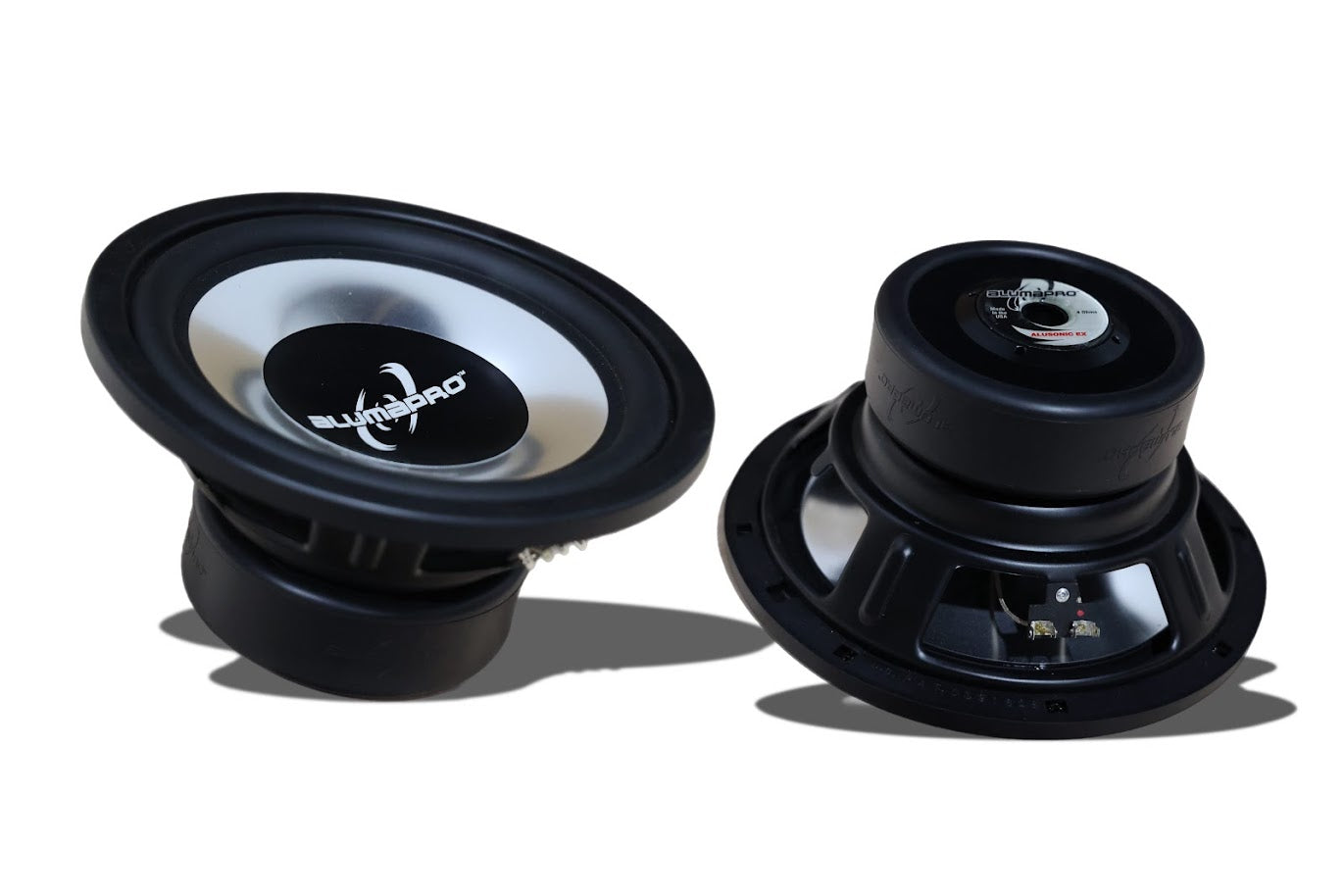

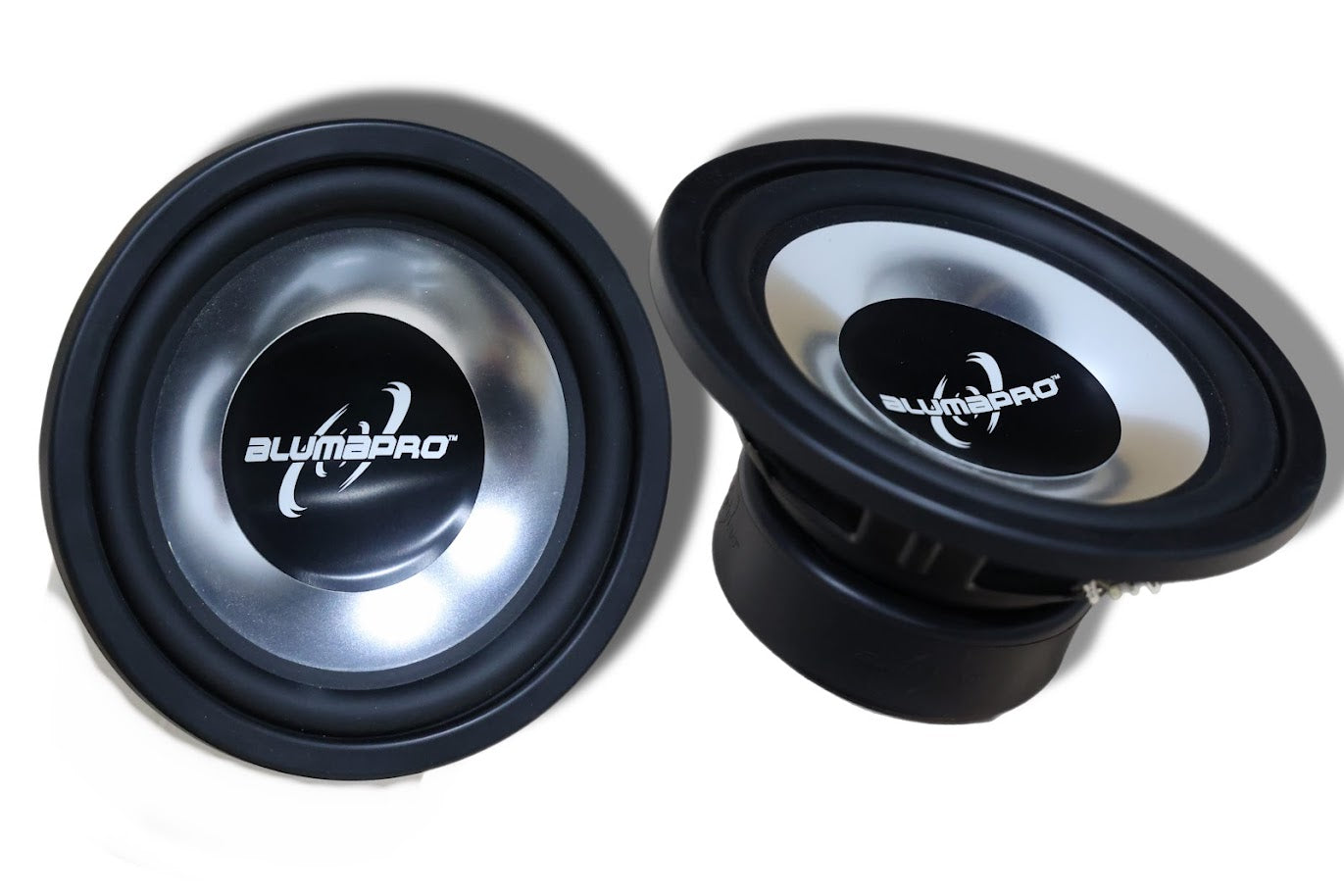

Alumapro Alusonic EX 12 12-Inch Metal Cone Subwoofer
Alumapro Alusonic EX 12 12-Inch Metal Cone Subwoofer
The Alusonic EX 12 puts a full 12 inches of Alumapro aluminum-cone bass within reach. Alumapro's proprietary aluminum cone, a laminated Nomex suspension and 250 W RMS of power handling deliver deep, controlled output from a compact sealed box.
Highlights
- Proprietary aluminum cone
- Heat-dissipating integrated cone assembly
- High-temp aluminum composite voice coil
- Vented motor structure
- Laminated Nomex suspension with high-roll Santoprene rubber surround
- Heavy-gauge steel frame, 5.25-inch mounting depth
- 250 W RMS / 400 W peak
- Available in single 4-ohm, single 8-ohm, dual 4-ohm and dual 6-ohm voice coil
Best for
Sealed boxes of 1.0–1.1 ft³. Also available: the Alusonic EX 12 Free-Air.
Specifications
| Parameter | Single 4 Ohm | Single 8 Ohm | Dual 4 Ohm | Dual 6 Ohm |
|---|---|---|---|---|
| Impedance (Ohms) | 4 | 8 | 4/4 DVC | 6/6 DVC |
| Fs (Hz) | 32 | 32 | 32 | 33 |
| Qms | 6 | 6 | 6 | 5 |
| Qes | .66 | .66 | .66 | .75 |
| Qts | .60 | .60 | .60 | .65 |
| Vas (Ft³) | 2.4 | 2.4 | 2.4 | 2.3 |
| Re (Ohms) | 3.9 | 7.9 | 1.9 (Par) 7.8 (Ser) | 2.8 (Par) 11.3 (Ser) |
| Xmax (mm) | 10 | 10 | 10 | 10 |
Mounting dimensions (inches)
| Diameter | 12.189" |
|---|---|
| Mounting diameter (cutout) | 10.125" |
| Bolt circle diameter | 11.75" |
| Mounting depth | 5.25" |
Recommended enclosures
- Sealed: minimum 1.0 ft³, optimum 1.1 ft³
- Example closed-box internal dimensions: 8" × 13" × 16.5"
The Alumapro difference
Alumapro has built aluminum-cone subwoofers in the USA since 1994. An aluminum alloy cone stays rigid under power where paper and poly cones flex, and it helps draw heat away from the voice coil, so bass stays tight and controlled when you turn it up. Every Alumapro sub is hand built in Huntley, Illinois.
Buy direct from ShopAlumapro.com, the main online home of Alumapro. Every order comes with the 2-year warranty, free shipping on orders of $499 or more, and real support from our team in Cary, Illinois. Questions about your build? Talk to us.
