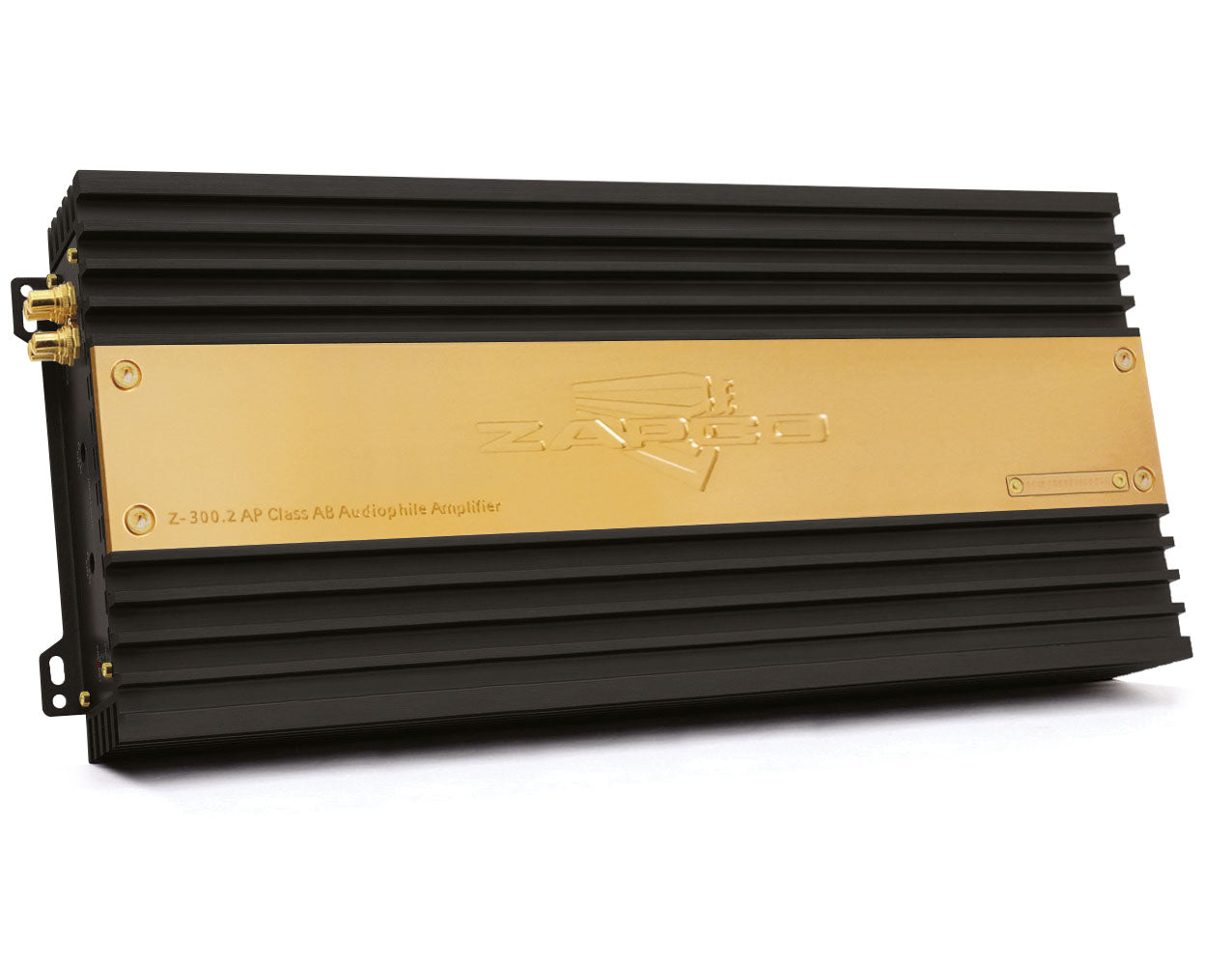

Zapco Z-300.2 AP 2-Channel Class-AB Pure SQ Competition Amplifier
Zapco Z-300.2 AP 2-Channel Class-AB Pure SQ Competition Amplifier
Zapco Z-300.2 AP – 2-Channel Class-AB Pure SQ Competition Amplifier
The Z-AP Series are Zapco's Pure SQ Competition Amplifiers: "The ultimate SQ amplifier designed by listening with ears as much as by measuring."
Main features per Zapco: differentially balanced inputs with 0.1% resistors, RCA inputs and outputs with proprietary gold plated connectors, high-end op-amps, caps and output devices, new aerospace insulator material, increased operating voltage, no electronic crossover or controls (for the purest audio signal), and a solid copper plate with logo and serial number.
Specifications
| Type | 2-Ch. Class-AB |
|---|---|
| Power, 4Ω | 2 x 300 W |
| Power, 2Ω | 2 x 500 W |
| Power, 1Ω | 2 x 800 W |
| Power, Bridged 4Ω | 1 x 1000 W |
| Power, Bridged 2Ω | 1 x 1600 W |
| Signal stage | S/N > 110 dB, THD < 1% at 14.4V |
| Frequency response | 15 Hz - 30 KHz |

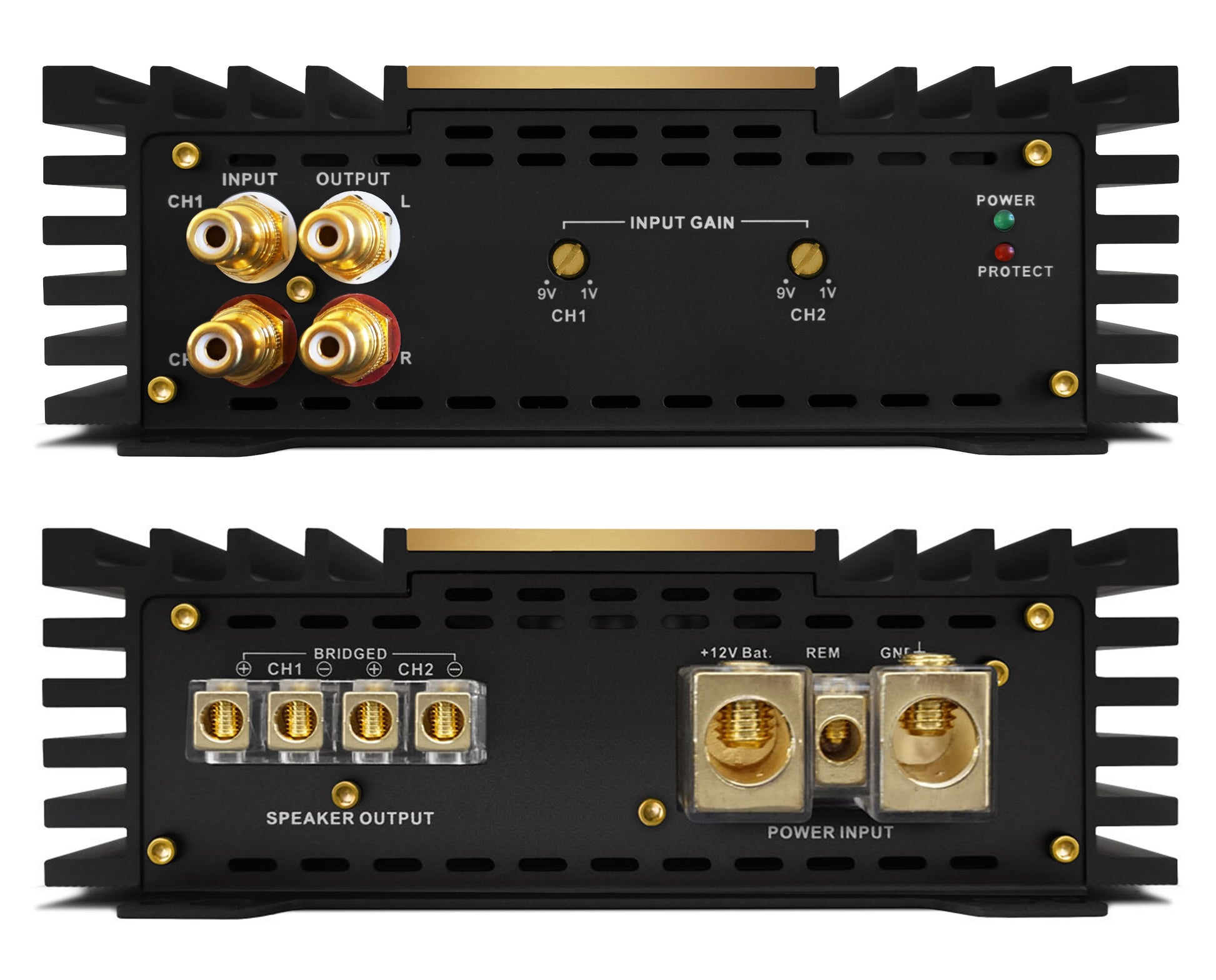

| Low level in/out | 2 x RCA in, 2 x RCA out |
| Controls | None (gain only) |
| Gain | Adjustable, 9V - 1V |
| Dimensions (mm) | Overall 478 x 190 x 62 |
