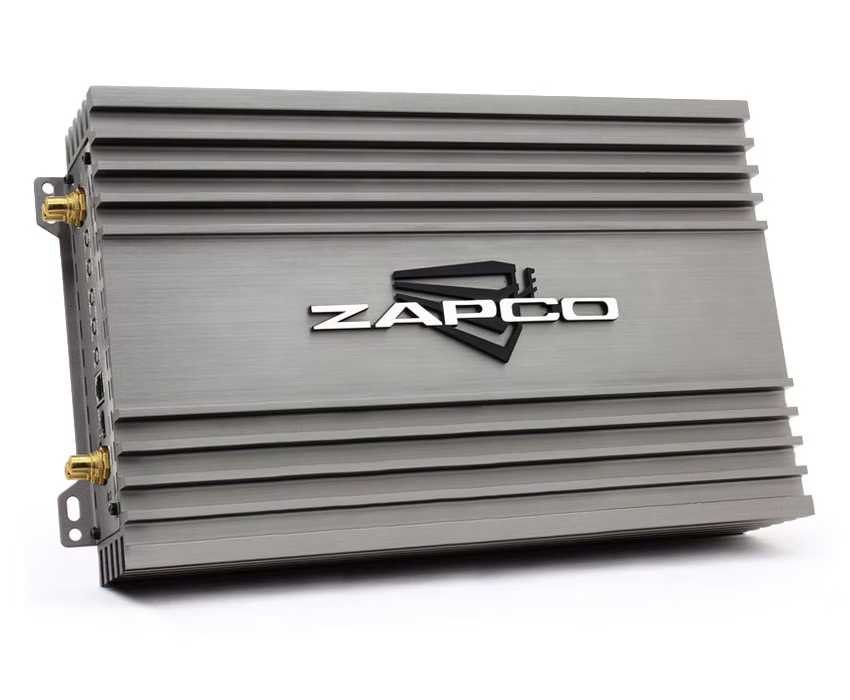

Z-1KD II
Mono Class D Sound Q Amplifier

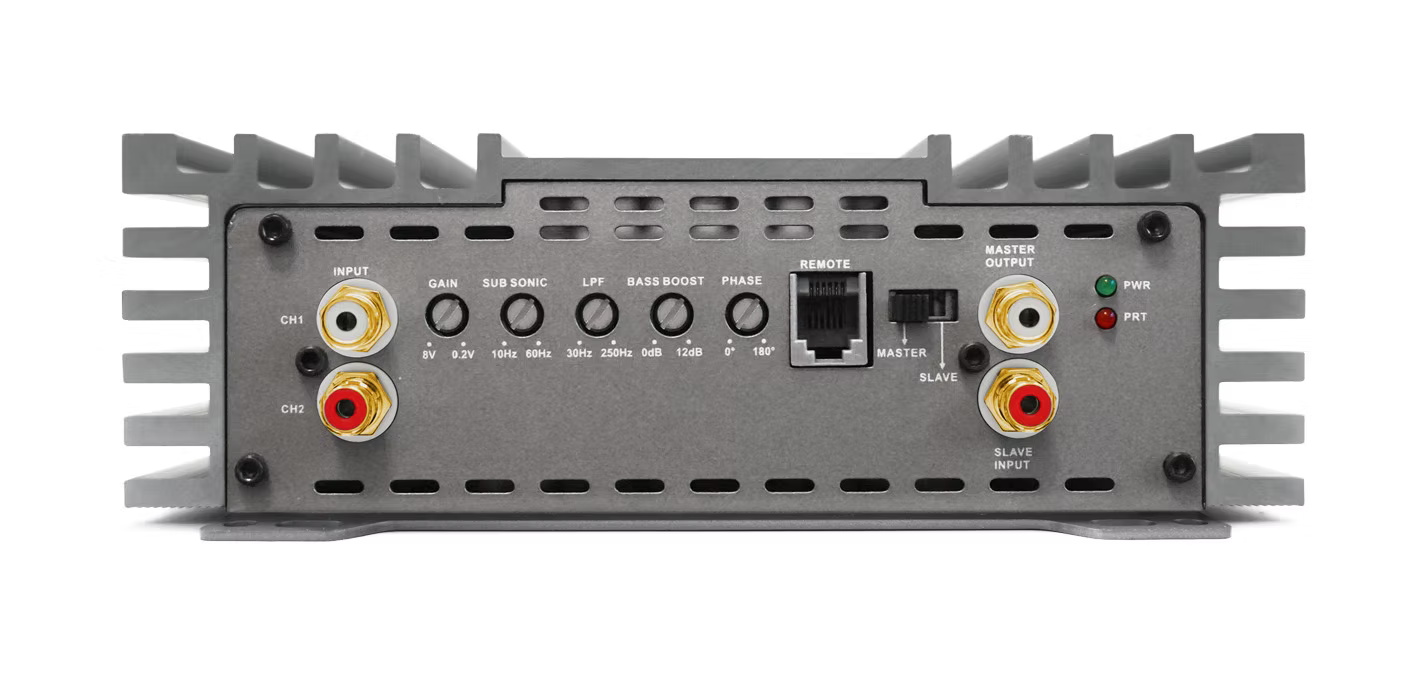

Features and Functions

- Mono Class D Linkable, bass amplifier
- Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)
- PWM MOSFET power supply
- 24 dB Variable low pass (LPF) crossover
- 12 dB Variable bass boost equalization
- 0-180 degree variable phase shift
- 24 dB Variable subsonic filter
- Selectable master and slave operation for Linked (strapped) amplifier operation

Technical Specifications

- Power @ 4Ω: 450 watts
- Power @ 2Ω: 700 watts
- Power @ 1Ω: 1050 watts
- Linked @ 2Ω: 1800 Watts
- THD @ Rated Power < 0.05%
- Signal to Noise Ratio > 90dB
- Damping factor: > 350
- Efficiency: 86%
- Input Sensitivity .2v to 8v
- Overall Dimensions (mm): 190(W) x 62(H) x 305(L)
