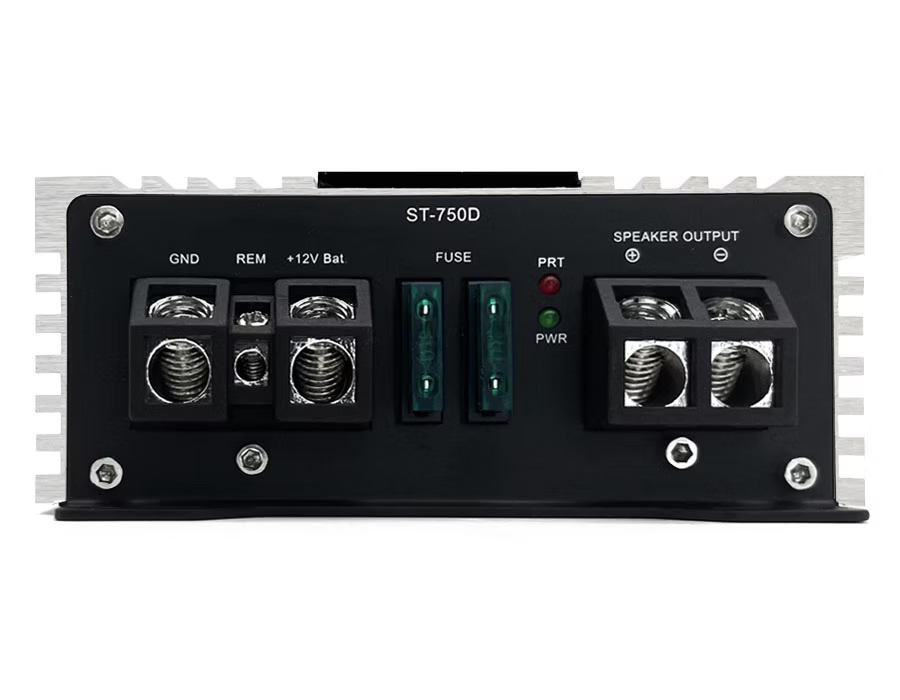

ST-750D Mono Class D
Compact Amplifier

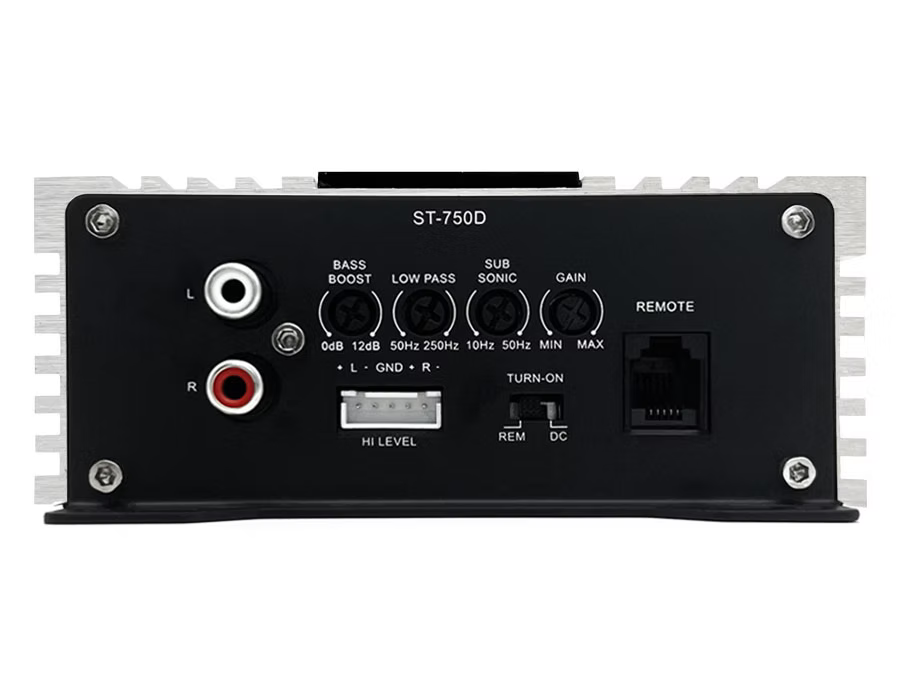

Features and Functions

- Mono, Bass, Class D
- RCA and Speaker Level inputs
- Variable input gain control
- Variable electronic crossover
- Variable bass boost control
- Subsonic Filter

Technical Specifications

- Power @ 4Ω: 1 x 400 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 1 x 750 watts RMS
- Signal to Noise Ratio > 98dB
- THD + Noise < 0.5%
- Frequency Response 10Hz to 250Hz ±1dB
- Operating Voltage: 6.5v to 17v
- Overall Dimensions (mm): 124(W) x 50(H) x 242(L)
