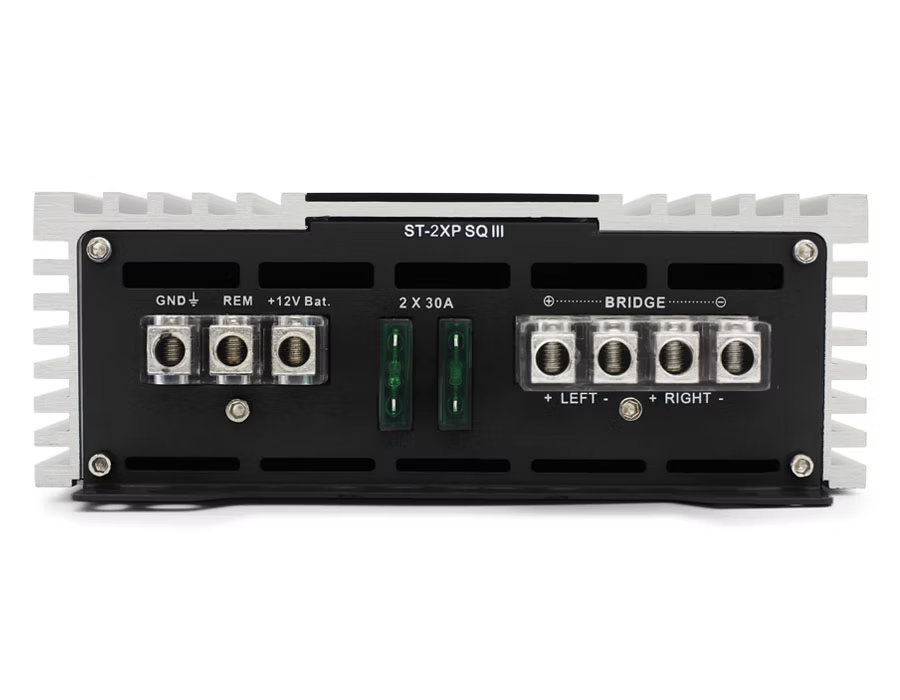

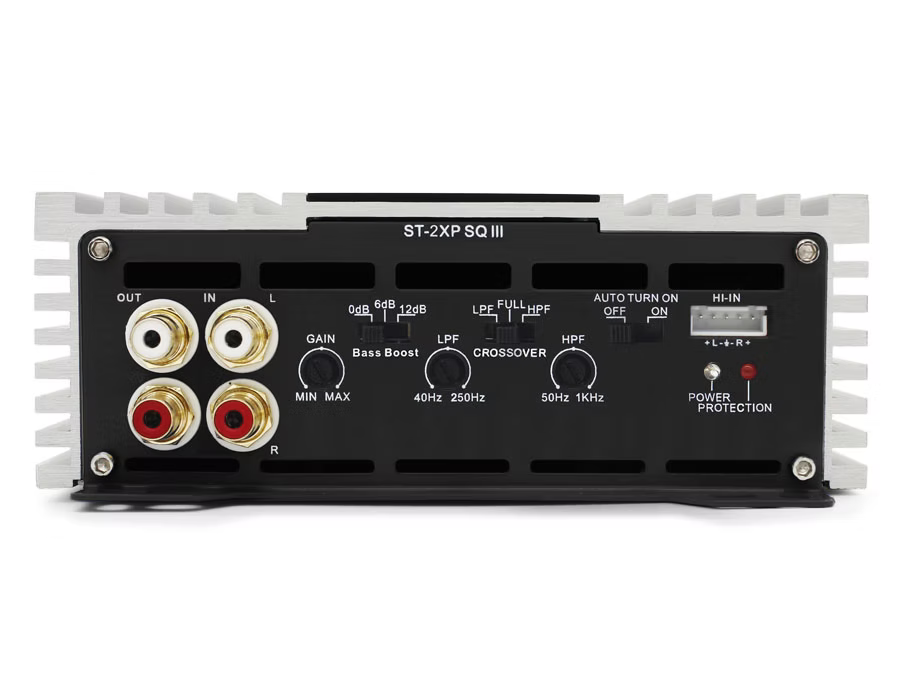

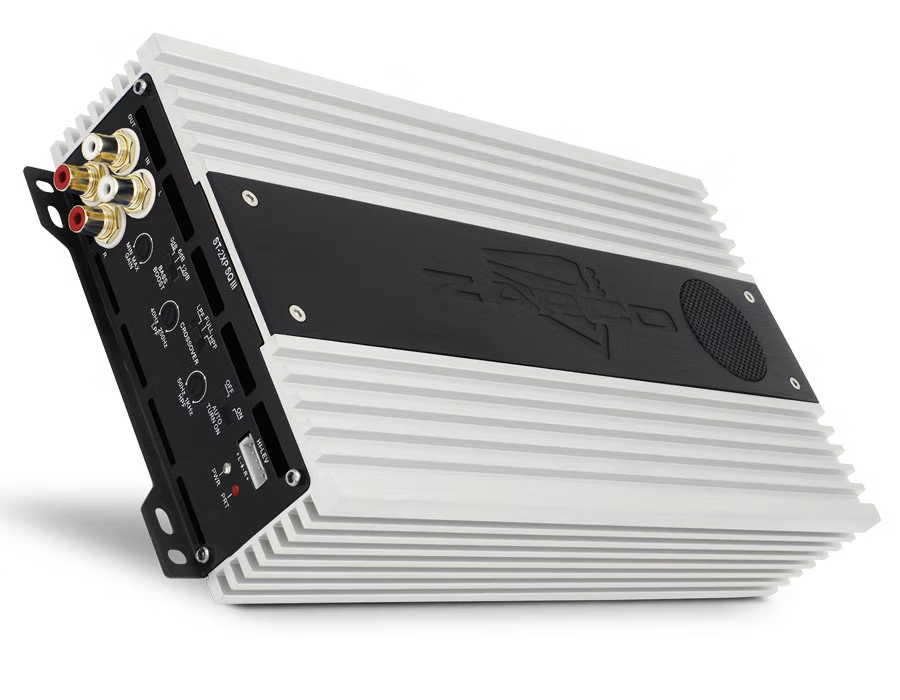

Zapco ST-2XP SQ III LE 2-Channel Class AB Sound Quality Amplifier
Zapco ST-2XP SQ III LE 2-Channel Class AB Sound Quality Amplifier
The Zapco ST-2XP SQ III LE is a 2-channel, full-range Class AB amplifier built for sound quality. It makes 2 x 150 W at 4 ohms, 2 x 250 W at 2 ohms, or 500 W bridged into 4 ohms, so it can run a front component set or bridge to a single subwoofer. The LE version moves to a new aluminum chassis with Tiffany-style panel-mount RCA jacks and adds speaker-level inputs with auto turn-on for factory radio installs.
Part of the Zapco ST-X III Series.
Highlights
- 2-channel, full-range Class AB design for sound quality
- Tiffany-style panel-mount RCA inputs
- Speaker-level inputs with auto turn-on
- Variable input gain, electronic crossover and bass boost
- New ST-X III LE aluminum chassis
Best for
Powering a front component set in a sound-quality build, or bridging to one subwoofer. For a full system from one amp, see the ST-6X SQ III LE.
Specifications
| Type | 2-channel Class AB, full range |
|---|---|
| Power, 4Ω | 2 x 150 W |
| Power, 2Ω | 2 x 250 W |
| Power, bridged 4Ω | 1 x 500 W RMS |
| THD at rated power | < 0.5% |
| THD + noise | < 0.05% |
| Signal-to-noise ratio | > 95 dB |
| Channel separation | > 60 dB |
| Frequency response | 15 Hz – 30 kHz ±1 dB |
| Input sensitivity | 0.25 V – 5 V |
| Dimensions, net (W x H x L) | 160 x 58 x 300 mm |
| Dimensions, overall (W x H x L) | 160 x 58 x 325 mm |
Download the Zapco ST-X III owner's manual (PDF)
Why buy Zapco from ShopAlumapro
ShopAlumapro is an authorized Zapco dealer. Orders of $499 or more ship free, and we can install your Zapco amplifier at our shop in Cary, Illinois. See installation or talk to us about your build.
