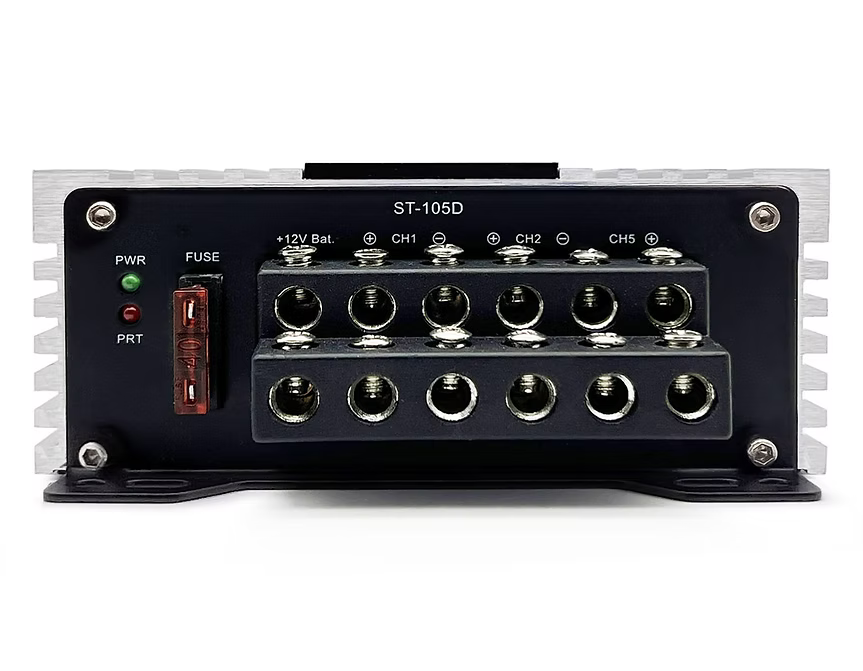

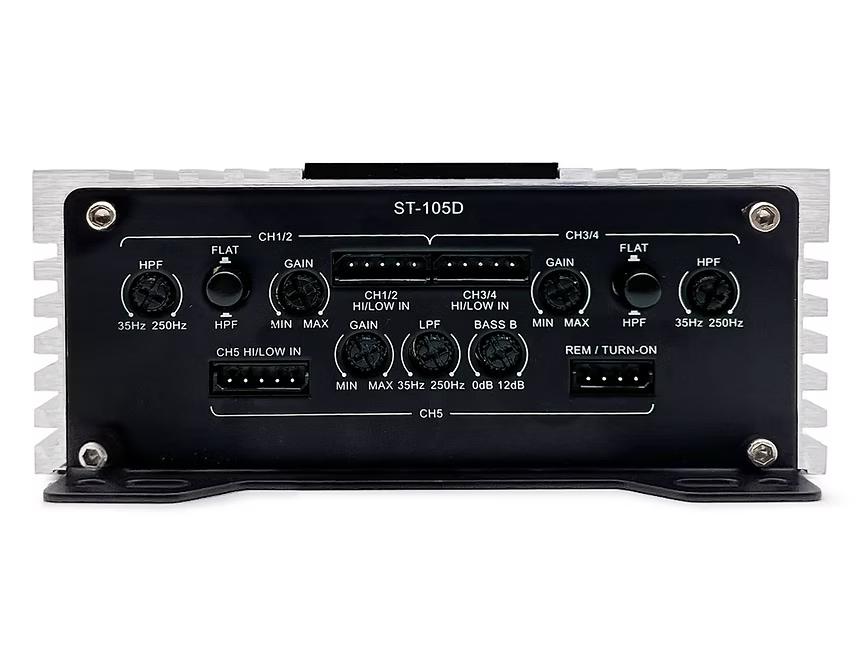

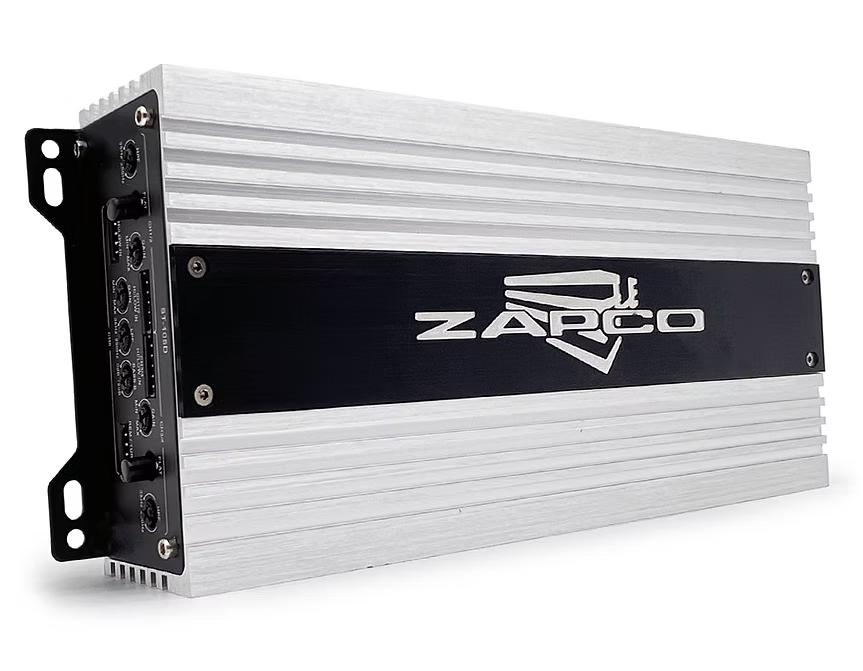

ST-105D
5-Ch. Class D Compact Amplifier

Features and Functions

- 5-Channel, Full Range, Class D
- Low and Speaker Level inputs
- Variable input gain control
- Variable electronic crossover
- Variable bass boost control

Technical Specifications

- Power @ 4Ω: 4 x 80 + 1 x 200 watts RMS
- THD @ Rated Power < 0.1%THD
- Power @ 2Ω: 4 x 130 + 1 x 300 watts RMS
- Power Bridged @ 4Ω: 2 x 250 + 1 x 300 W RMS
- Signal to Noise Ratio > 90dB
- THD + Noise < 0.1%
- Frequency Response 20Hz to 20KHz ±1dB
- Input Sensitivity .38v-13v (Ch.1/4), .21v-9v (Ch.5)
- Dimensions (mm): 124(W) x 50(H) x 262(L)
