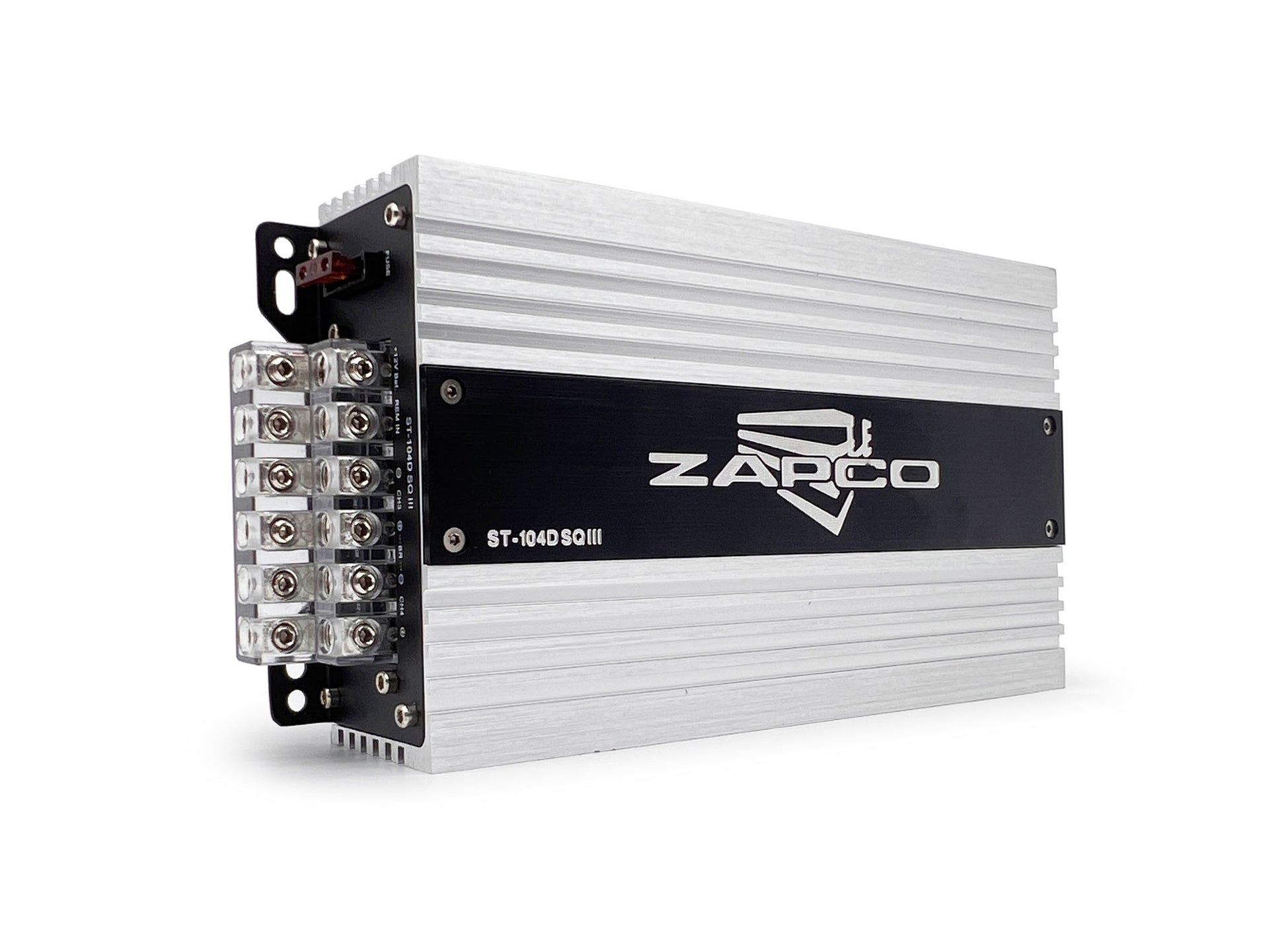

• Zapco ST-104D SQ III 4-Channel Class-D Compact Amplifier

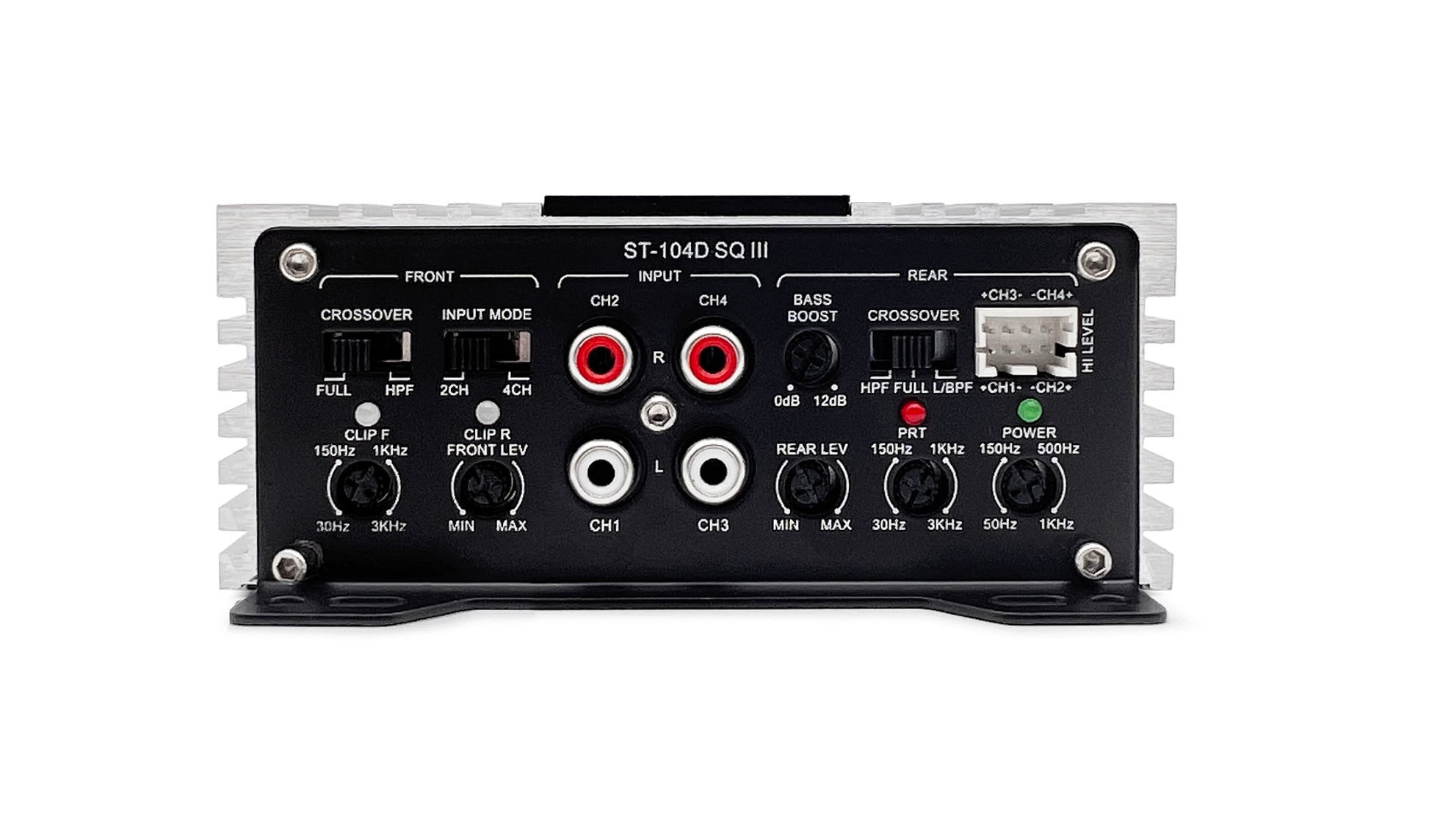

  • Zapco ST-104D SQ III 4-Channel Class-D Compact Amplifier, image 2

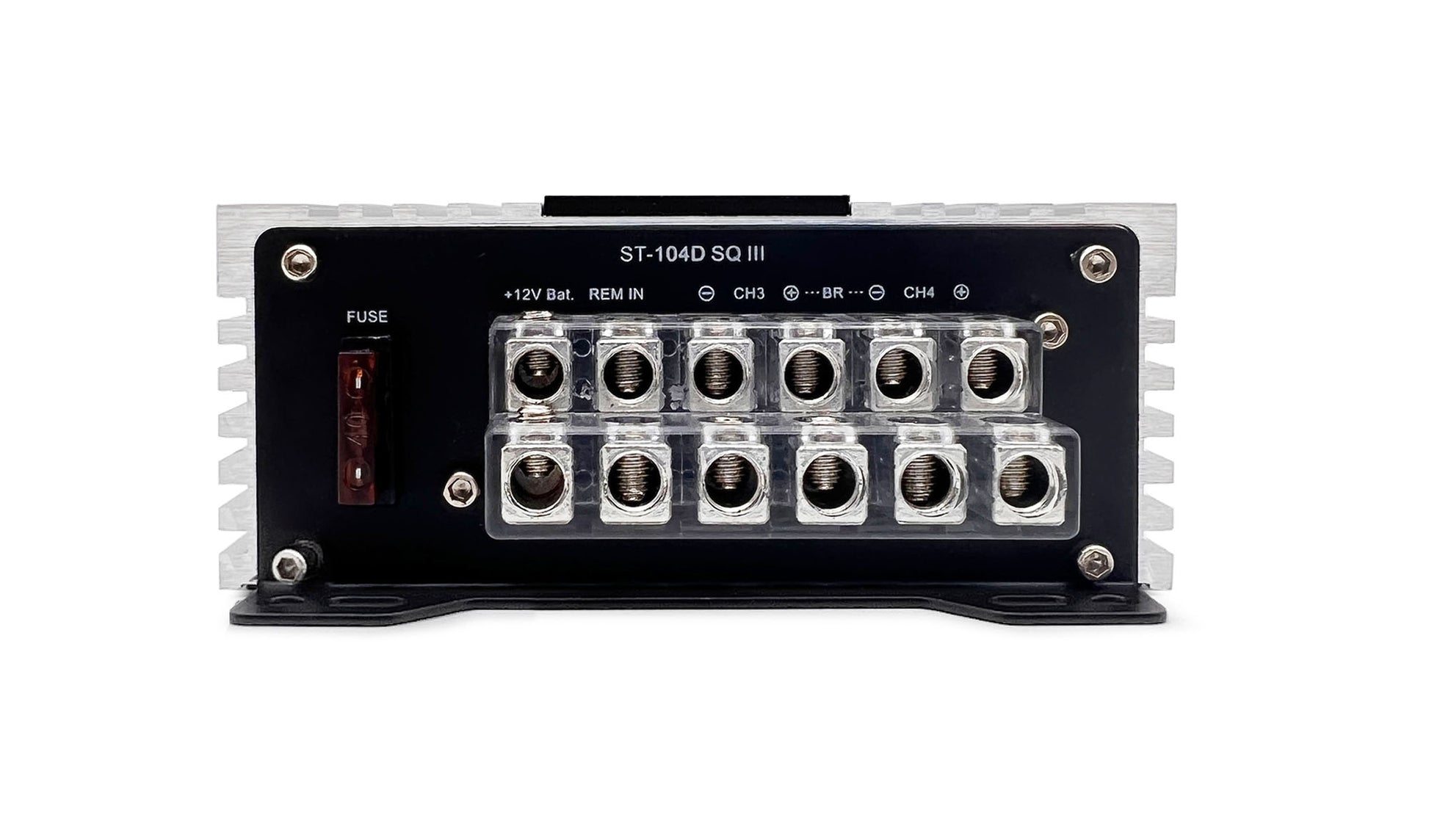

  • Zapco ST-104D SQ III 4-Channel Class-D Compact Amplifier, image 3
1 3

Zapco ST-104D SQ III 4-Channel Class-D Compact Amplifier

Zapco ST-104D SQ III 4-Channel Class-D Compact Amplifier

Zapco ST-104D SQ III – 4-Channel Class-D Compact Amplifier

The ST-D Compact Series are full range Class-D amplifiers with great sound and more crystal clear power in a reduced chassis of 12.4 cm width, with the Studio brushed aluminum finned design. "Power and Performance in the smallest spaces."

Specifications

Type 4-Ch. Class-D
Power, 4Ω 4 x 100 W
Power, 2Ω 4 x 150 W
Power, Bridged 4Ω 2 x 300 W
Signal stage S/N > 90 dB, THD < 0.1%
Frequency response 15 Hz - 30 KHz
Low level in/out 4 x RCA inputs; speaker level inputs
Controls HP-FULL-LP filter, 0/12dB bass boost, 2/4-Ch. input mode
Gain Input sensitivity 0.25 - 6 V (low), 0.6 - 15 V (high)
Dimensions (mm) 213 (242 overall) x 124 x 50
$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details
