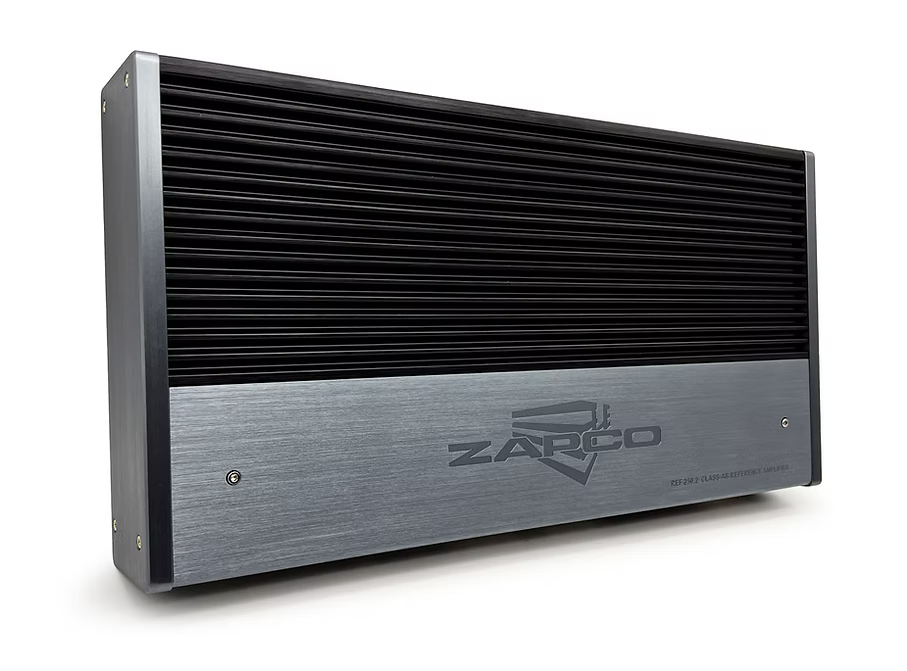

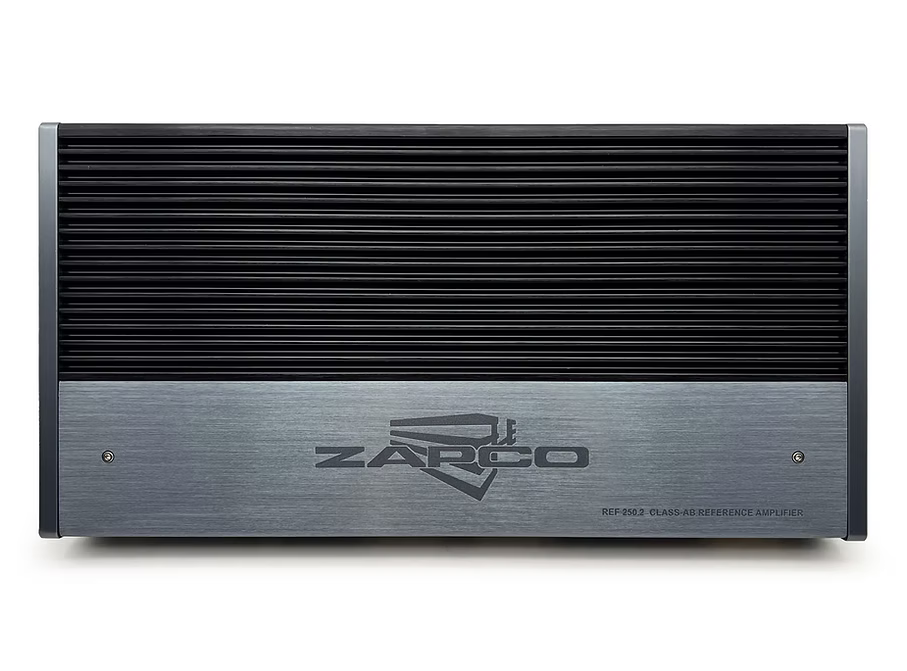

2-Ch. Class AB High-End Amplifier

Features and Functions

- 2-Channel, Class-AB, High-End Amplifier
- Signal to noise ratio of over 104dB
- High Quality Bipolar-input Dual OP
- High Quality/Transition Frequency Transistors
- High-precision 0.1% Output Resistors
- High density, Loss factor Input Capacitors
- Low internal resistance Power Capacitors
- Ultra Low On-Resistance, Fast Switching Mosfets
- High-power pure copper transformers
- Low Resistance Fuses

Technical Specifications

- Power RMS @ 4Ω: 2 x 250 watts
- Power RMS @ 2Ω: 2 x 350 watts
- Power RMS @ 4Ω Bridged: 1 x 800 watts
- THD @ Rated Power < 0.02%
- Signal to Noise Ratio > 104dB
- Frequency Response: 10Hz to 40,000Hz ±1dB
- Input Sensitivity: 0.5V to 8V
- Fuse Rating: 2 x 40A
- Overall Dimensions (mm): 210(W) x 62(H) x 416(L)
