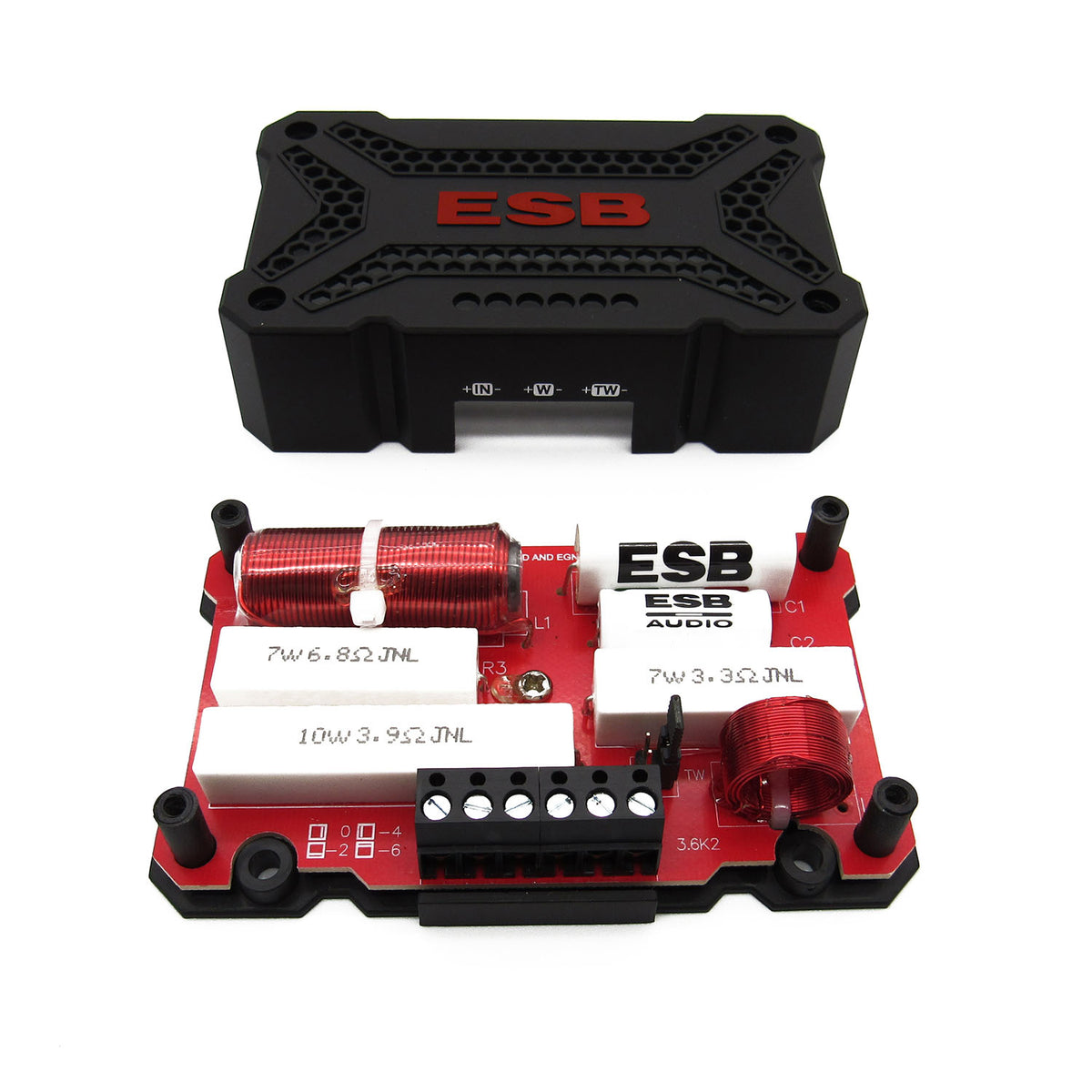

ESB 3.6K2 CX - 3000 Series 2-Way Passive Crossover

3.6K2 CX — 2-Way Passive Crossover

Passive crossovers are used in 2-way and 3-way speaker systems to electrically channel low tones to the bass loudspeaker and high notes and overtones to the high frequency speakers. If a passive crossover has to fulfill its function without compromise, it must be able to handle extreme variations in dynamics, the full range of audio frequencies, complex transients, and the varying impedance of a loudspeaker load. ESB passive crossovers are carefully designed to complement the exact characteristics of ESB speakers. Each crossover network circuit controls the signal to the high and low frequency speakers in a way that smooth acoustic response is maintained through the full audio spectrum.

• Dedicated for the 3.28 tweeter and 3.165 woofer
• High-thickness copper PCB
• Four-step tweeter level inside the network
• Oversized non-inductive ceramic resistors
• Polyester tweeter capacitor
• Asymmetrical slopes
• Air-wound tweeter inductor

Specifications

• Crossover frequency: 3 kHz
• Slope: 6 dB/oct LP, 12 dB/oct HP
• Tweeter level: 4 steps
• Low section: 3.165
• High section: 3.28
• Power handling: 300 W peak

Made in Italy.
