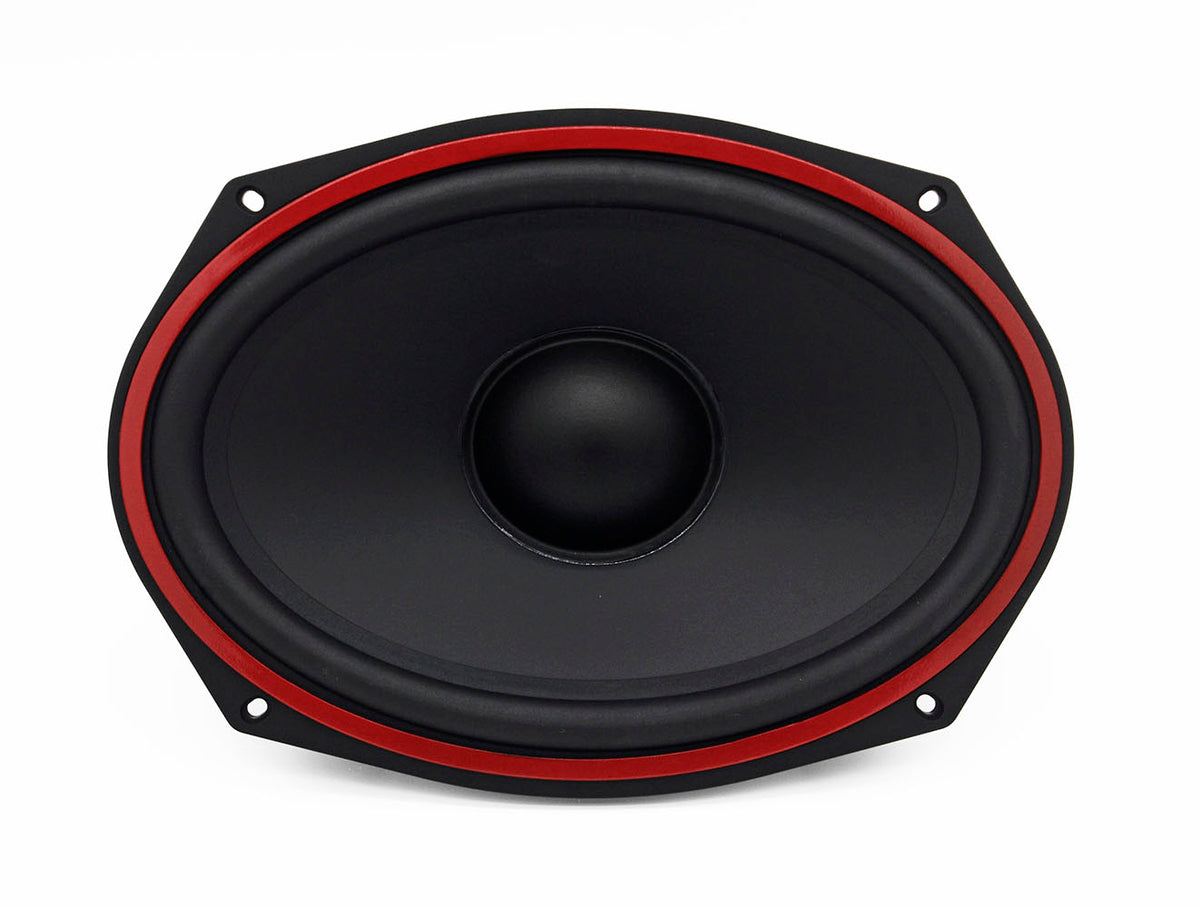

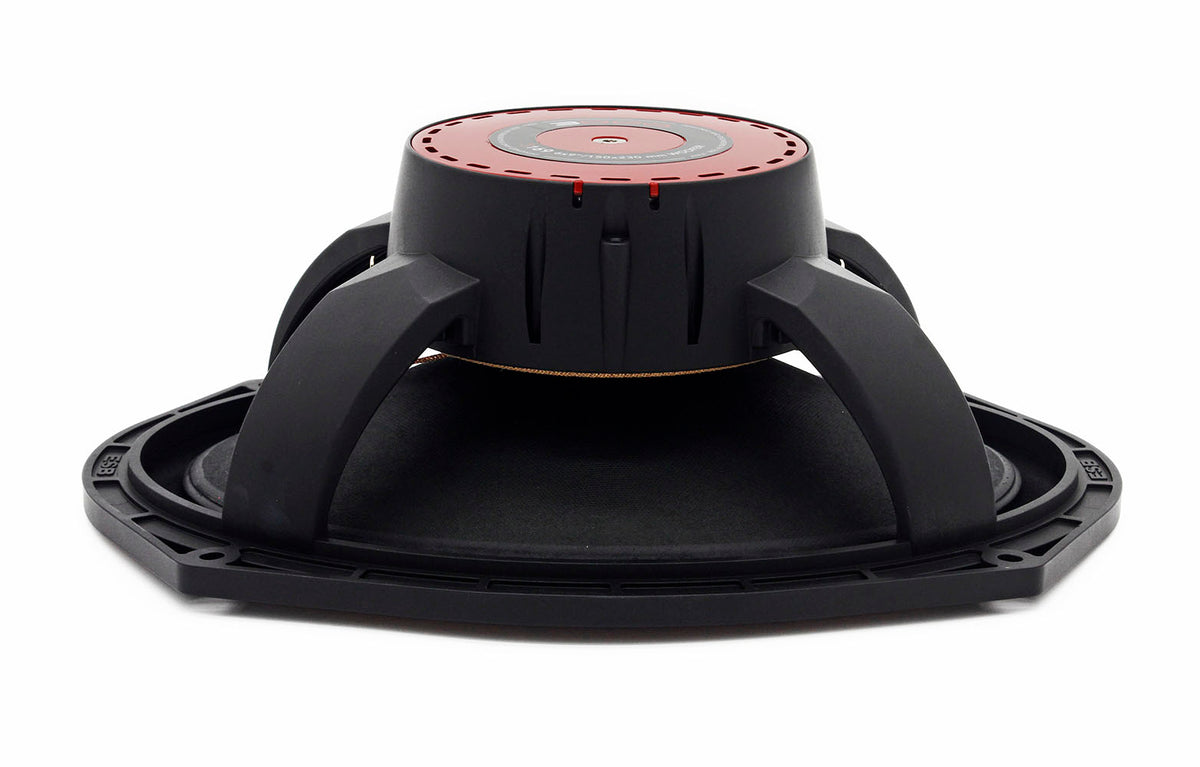

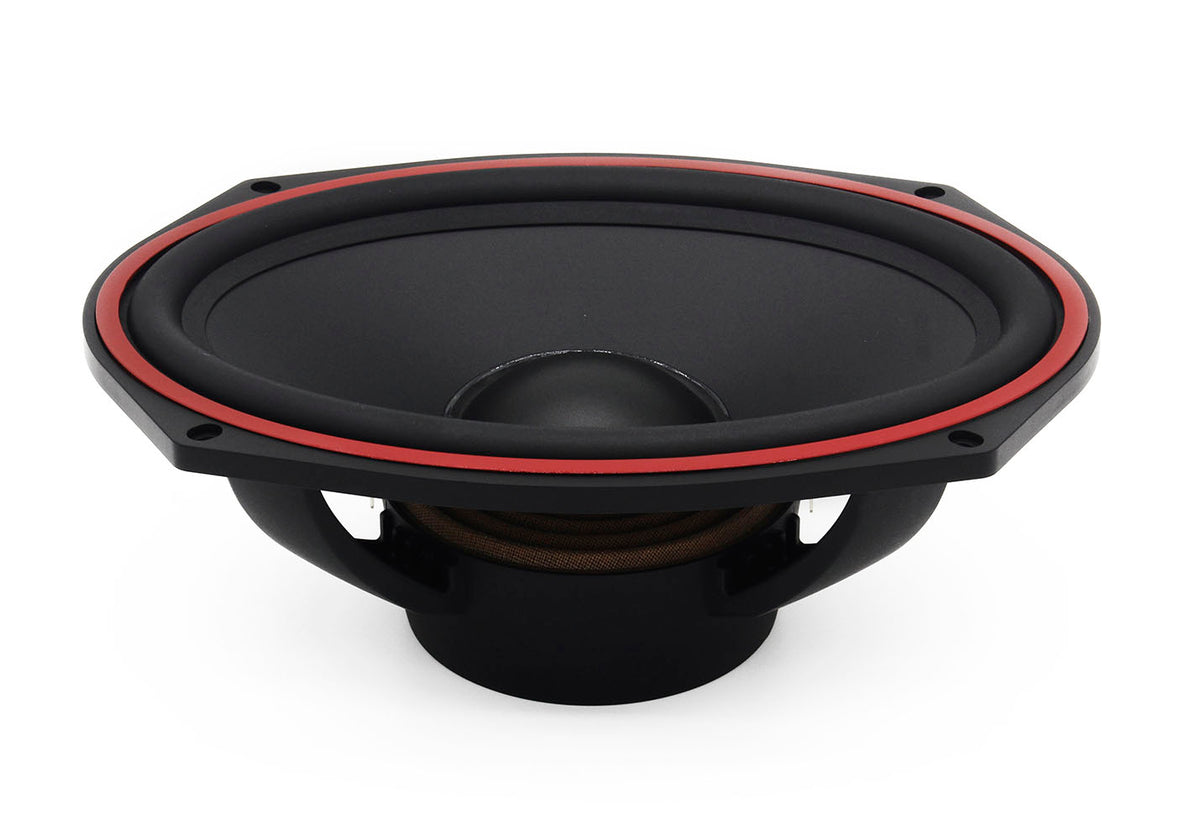

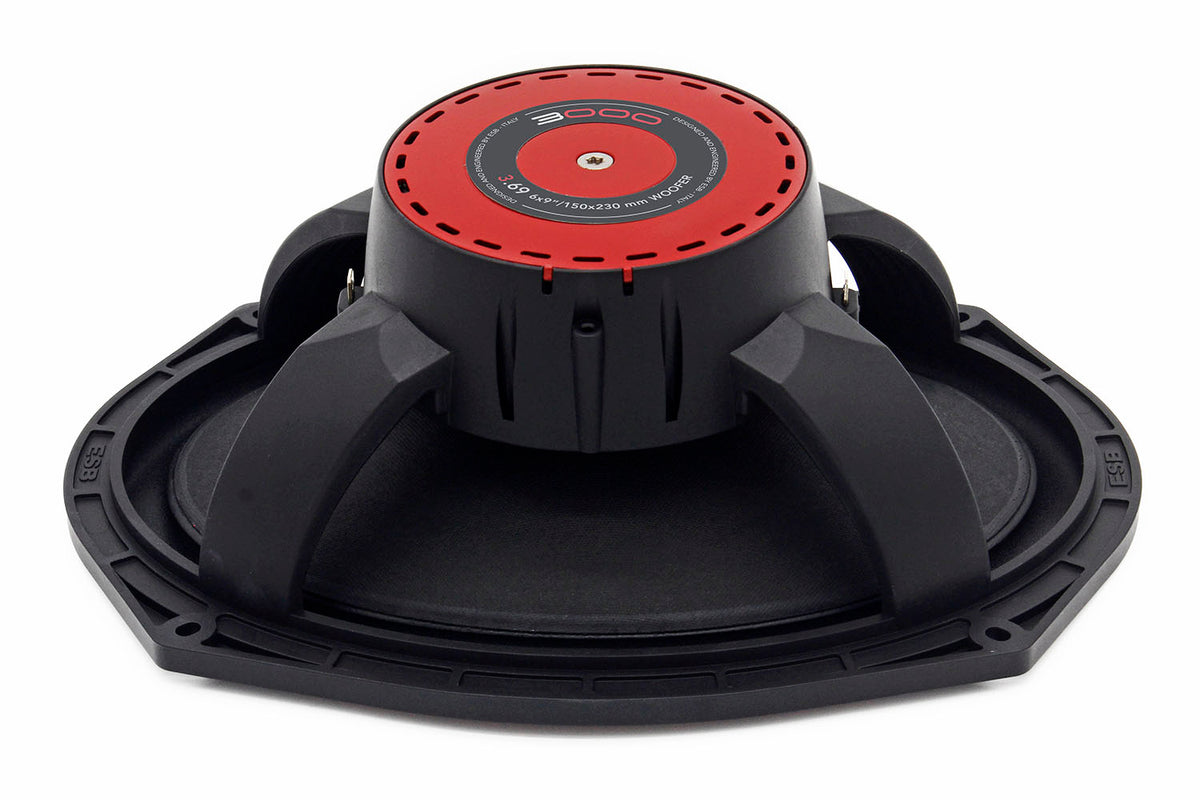

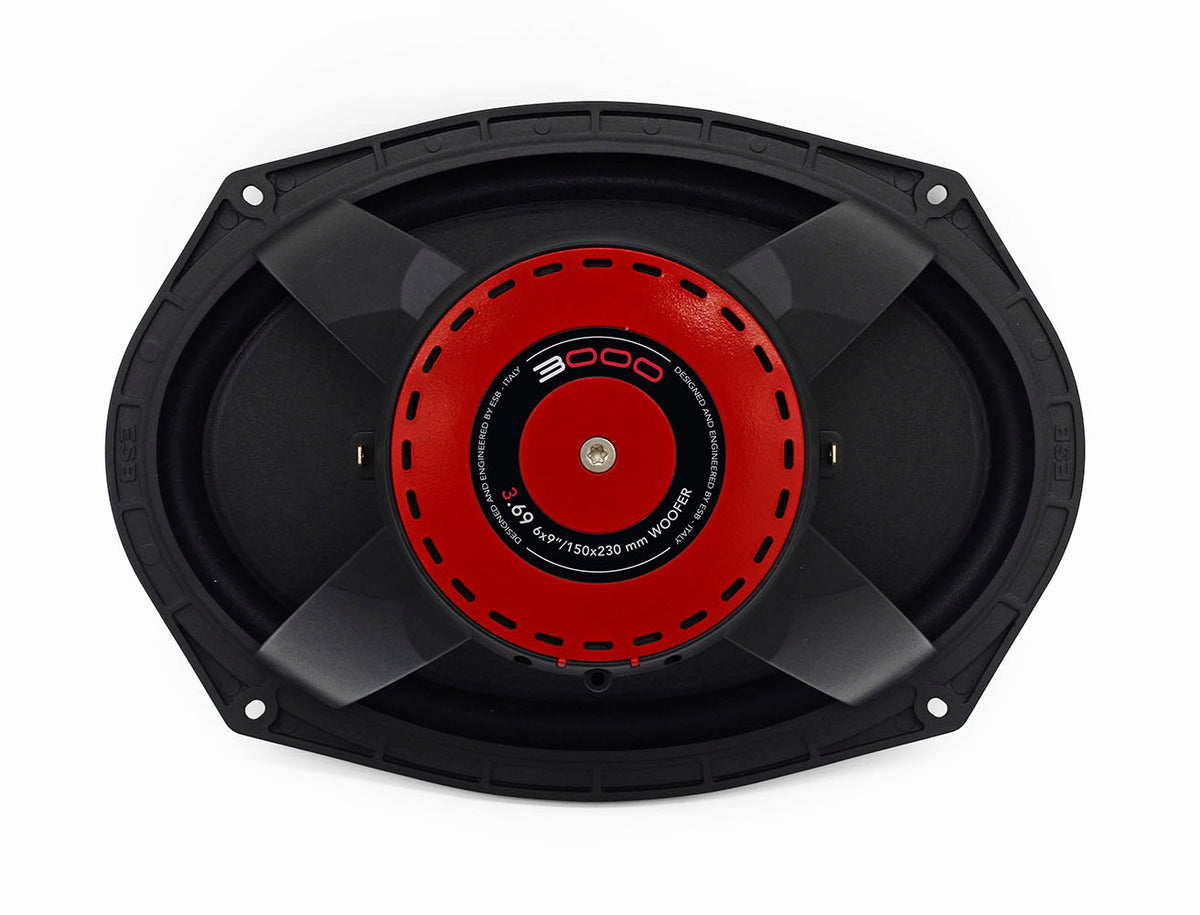

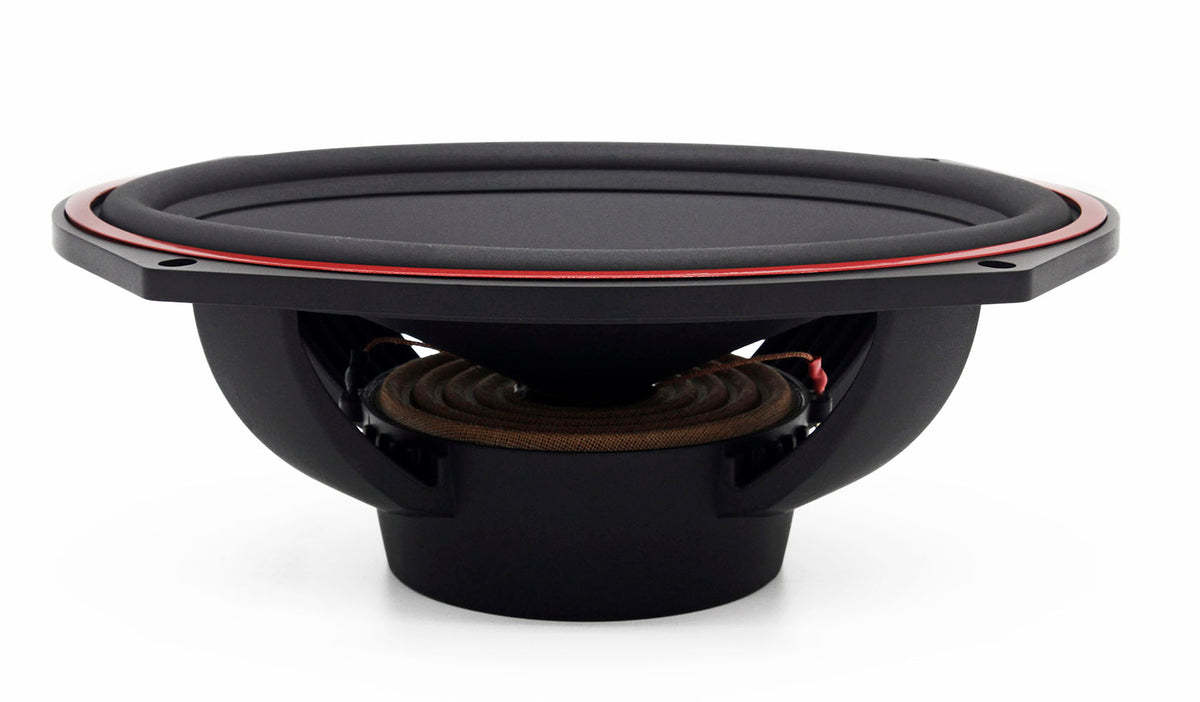

The ESB 3.69 is a 6x9" (150x230 mm) woofer with a paper cone, a self-damping ABS basket and a Y35 ferrite magnet, with deeper reach than the 6.5" 3.165. The 3000 Series ("Research at the Highest Level") is built on ESB's materials research: baskets engineered for torsional rigidity, pressed-paper cones with a waterproof treatment, Y-35 ferrite woofer motors and silk-impregnated fabric tweeter domes for a smooth sound.
Highlights
Paper cone
ABS basket with self-damping system
Y35 ferrite magnet
120 W nominal / 240 W transient, 91.5 dB sensitivity
Response from 55 Hz to 9 kHz
Best for
Factory 6x9 locations in doors and rear decks
Paired with the 3.65 widerange in the 3.69K2.5 system
Specifications
Type
6x9"/150x230 mm Woofer
Cone / Dome
Paper Cone; ABS Basket with Self-Damping System
Magnet
Y35 Ferrite Magnet
Nominal impedance
4 Ohm
Nominal / Transient power
120 W / 240 W
Frequency response
55 Hz ~ 9 KHz
Sensitivity (2.83V/1m)
91.5 dB
