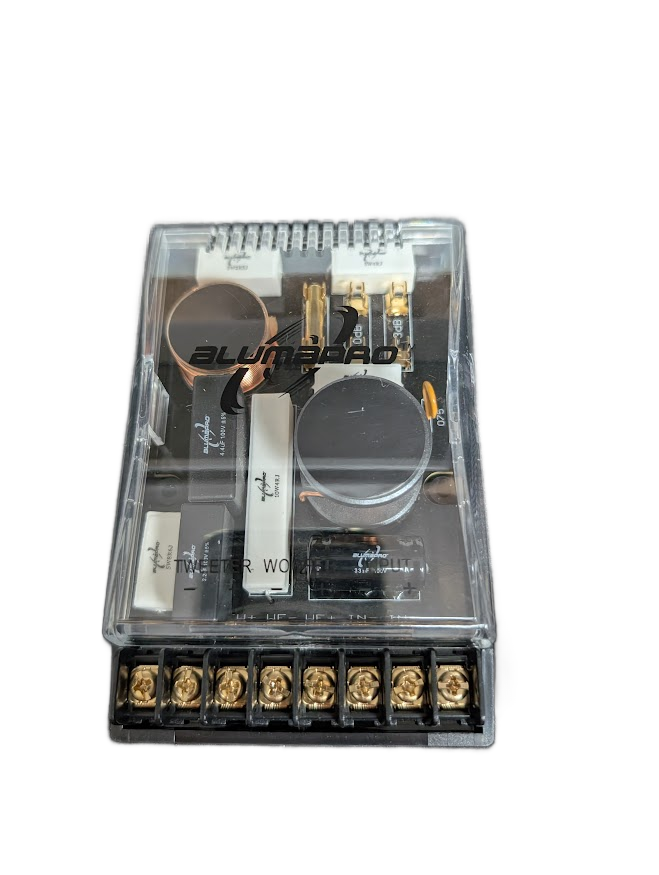

Alumapro 2-Way Crossover

ALUMAPRO

2-Way Crossover

Designed specifically for the ALC component speaker systems (ALC 1.0S 1" silk dome tweeter + ALC 5004 5.25" midrange and ALC 6004 6.50" midrange). Clean, high-quality 2-way network that delivers smooth transition and excellent staging.

Specification Details
Crossover Type Passive 2-Way
Crossover Frequency 3,000 Hz
Slope High-Pass: 12 dB/octave (2nd order)
Low-Pass: 6 dB/octave (1st order)
Tweeter Attenuation 0 dB / -3 dB / -6 dB (adjustable)
Power Handling 150–300 watts RMS
Impedance 4 ohm compatible

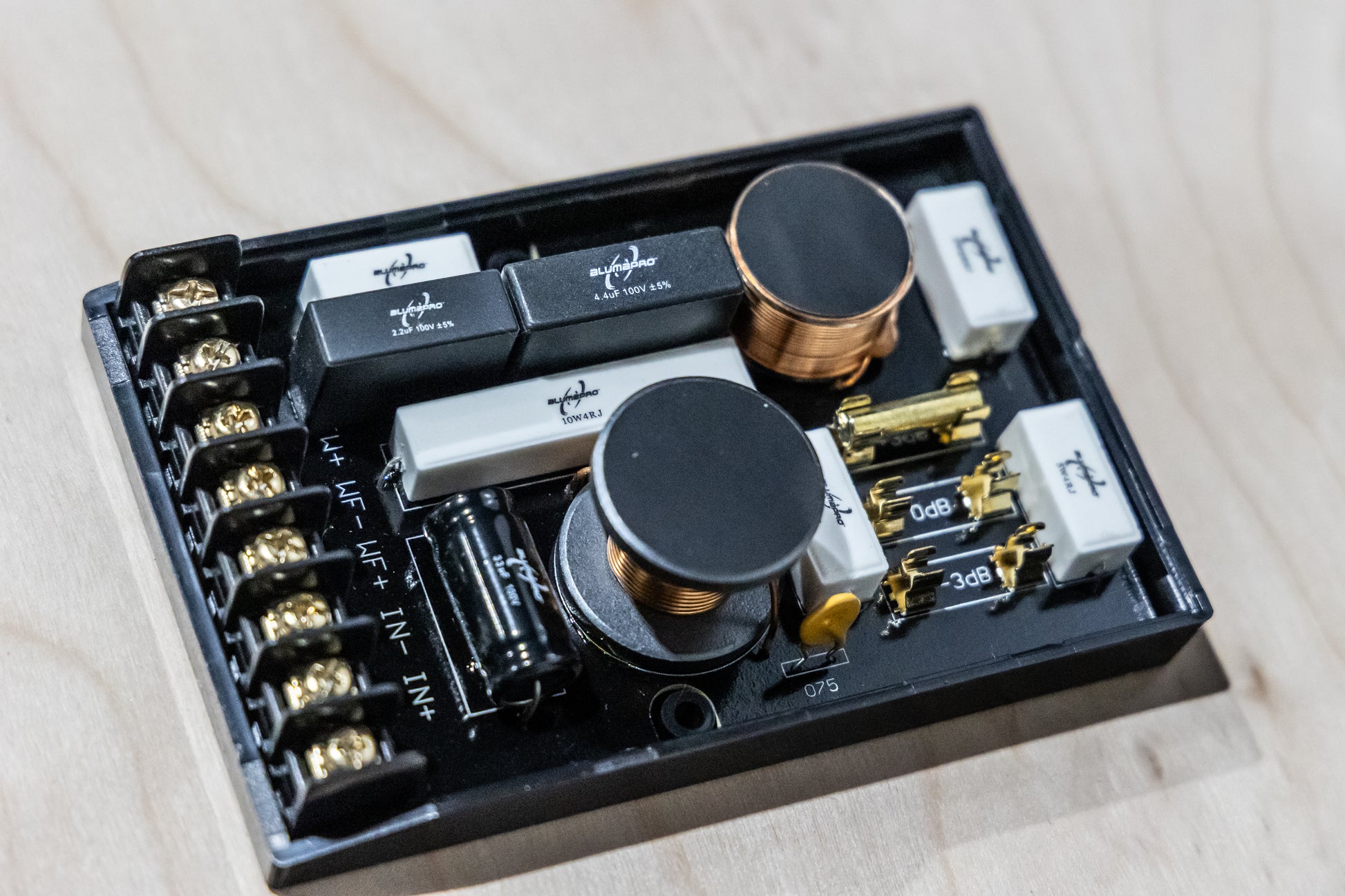

Components Premium Mylar capacitors, air-core inductors, gold-plated terminals

Features

  • Smooth, natural transition between tweeter and midrange
  • Adjustable tweeter level for perfect system tuning
  • High-quality parts for low distortion and long life
  • Compact design with easy wiring
  • Engineered for the ALC 1.0S tweeter and ALC 5004 midrange
  • Hand assembled in the USA

Part of the legendary Alumapro ALC component system – still available today at ShopAlumapro.com
