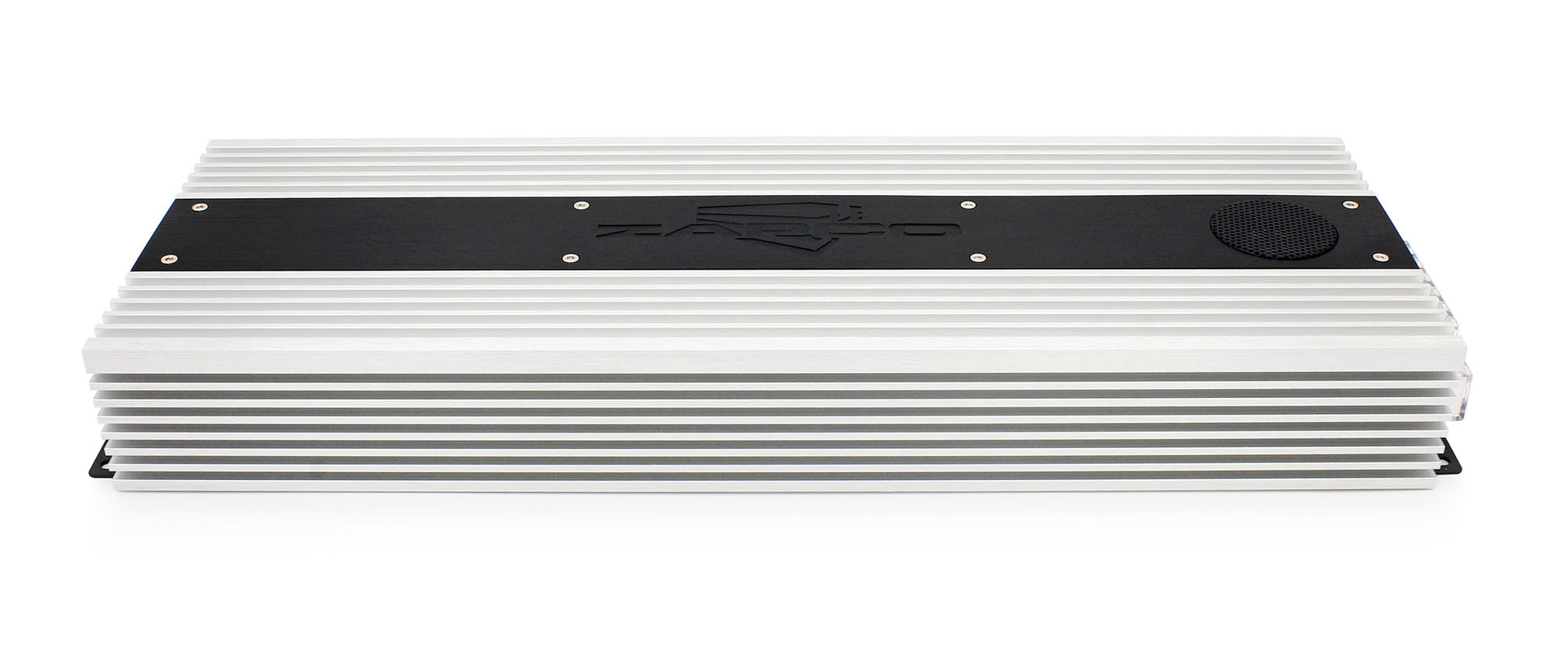

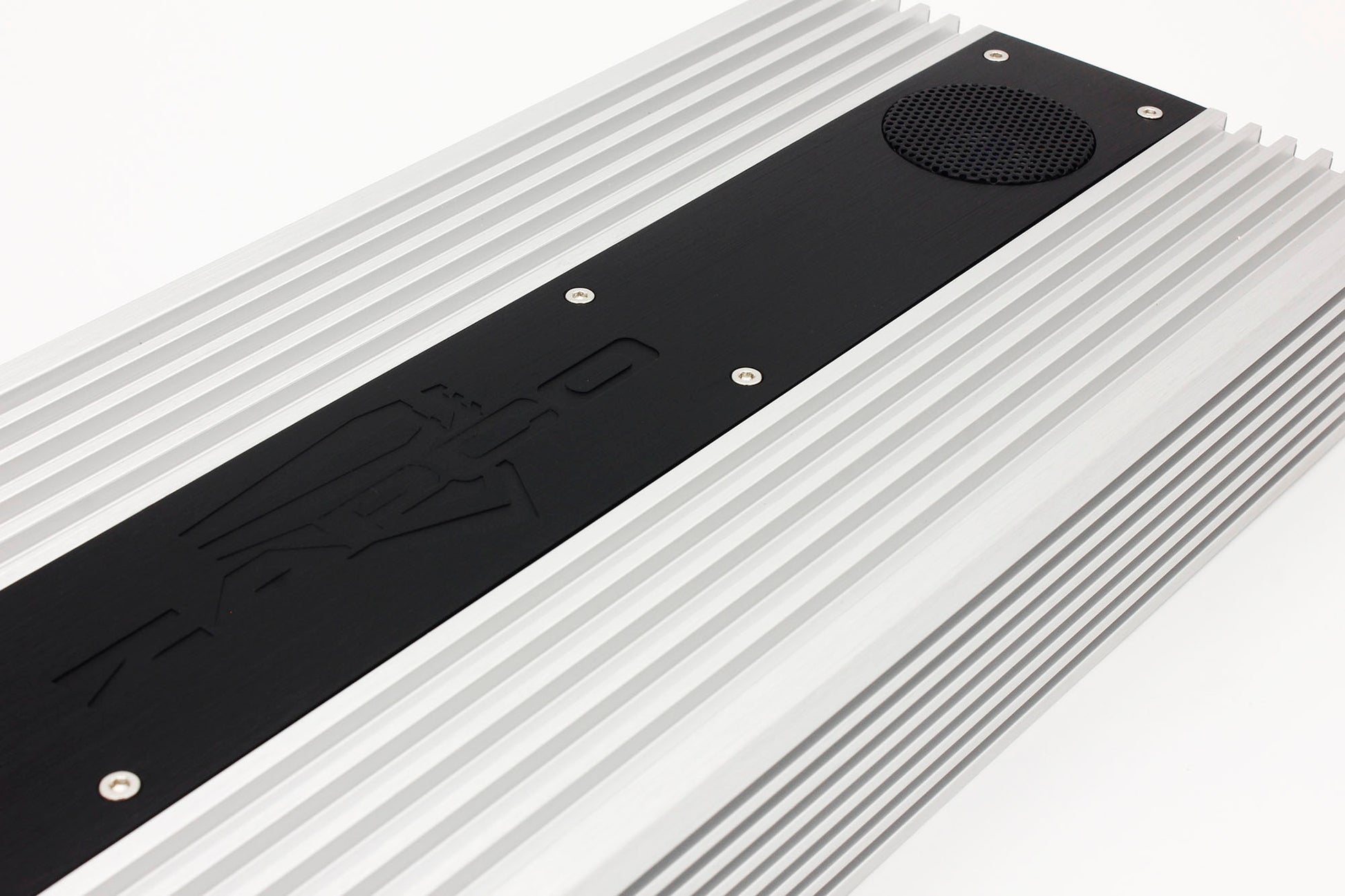

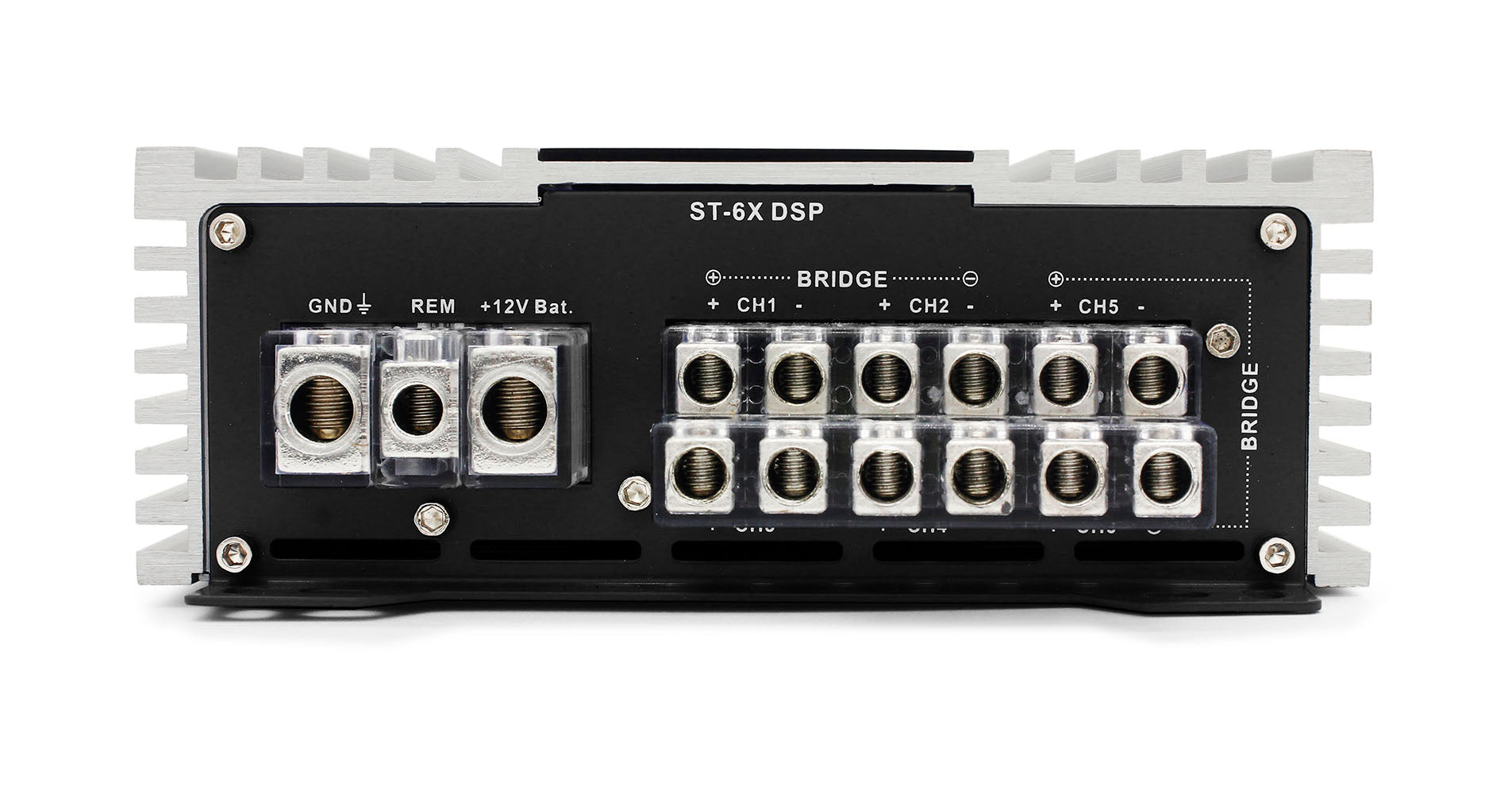

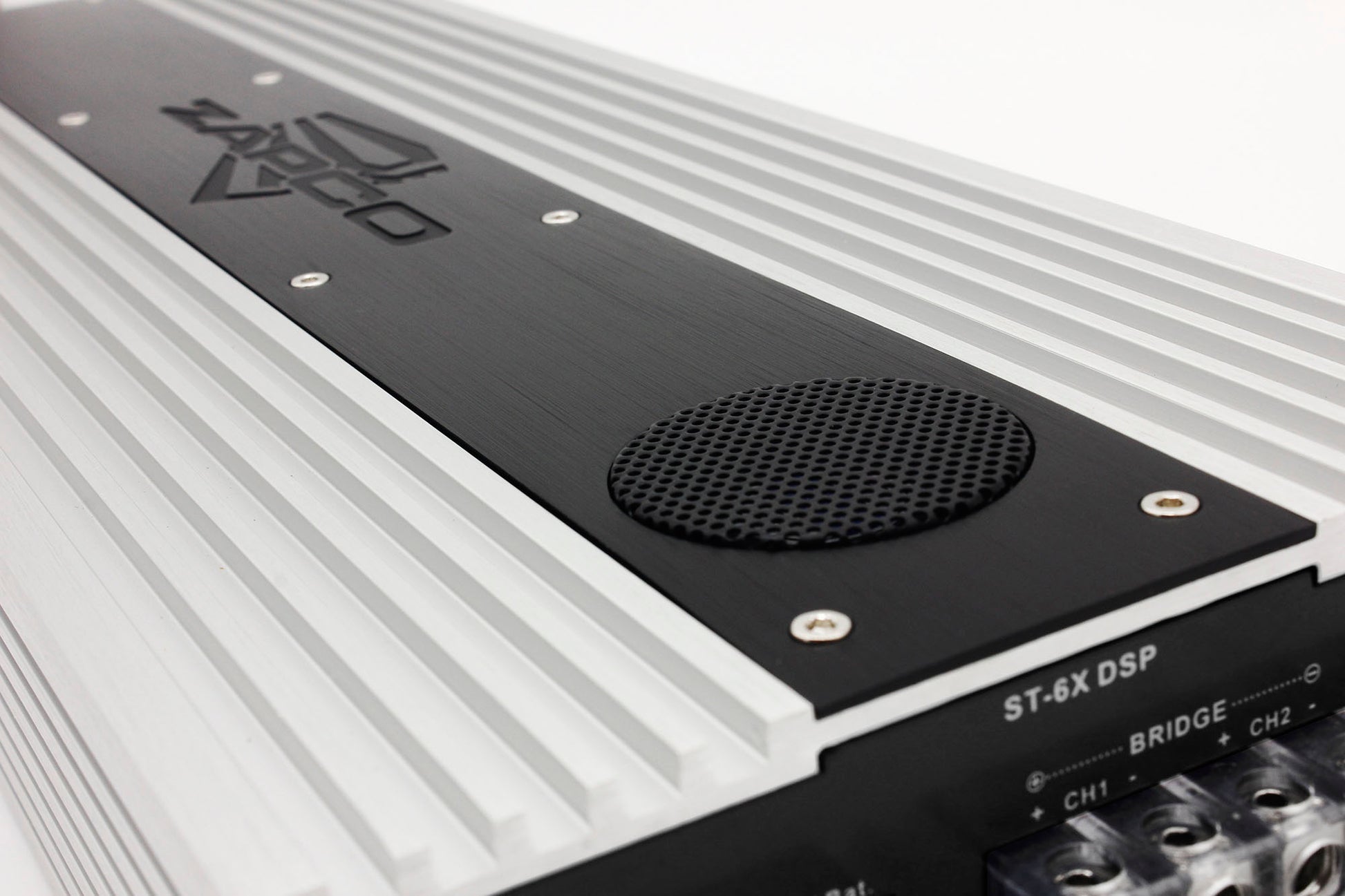

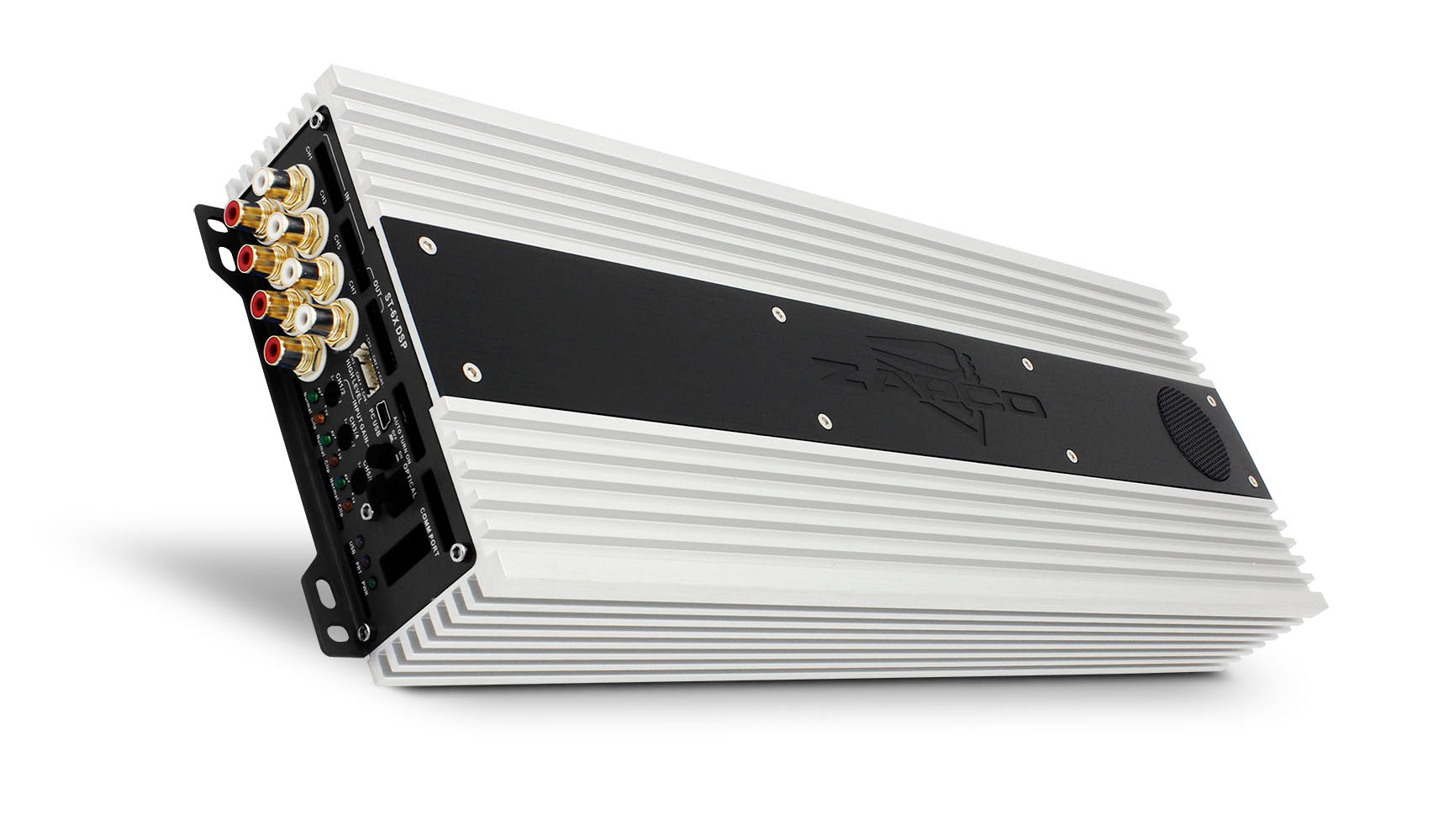

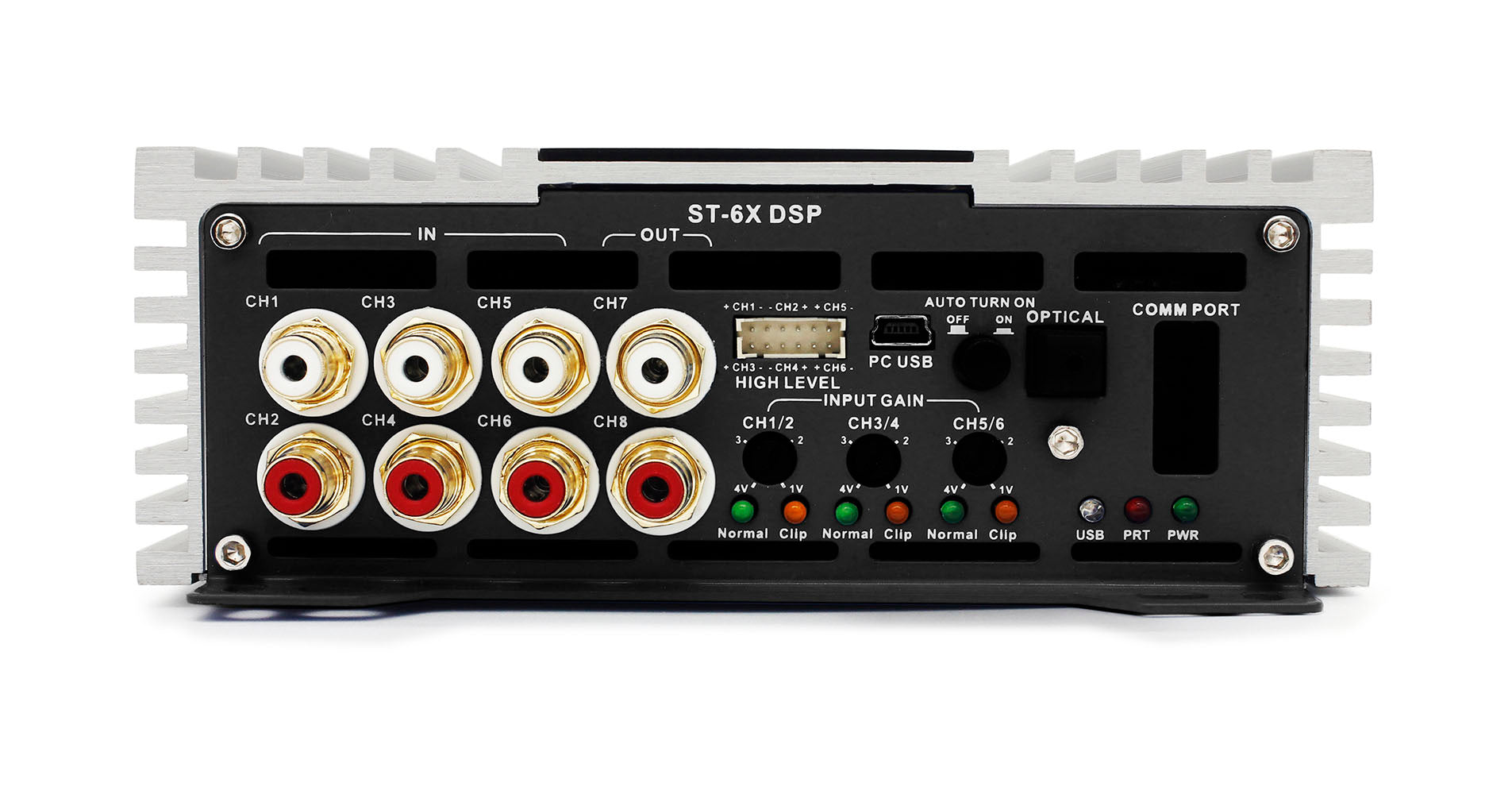

ST-6X DSP III 6-Ch. Class AB Amplifier with DSP

Features and Functions

6-Channel, Full Range, Class A/B

On-Board, Full Function, 8-ch. Digital Signal Processing

High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization on each channel

Optical Digital Input

BT Streaming: Bluetooth Port for external APTX HD Module (optional)

Analog input gain controls

Technical Specifications

Power @ 4Ω: 6 x 100 watts

THD @ Rated Power < 0.5% THD

Power @ 2Ω: 6 x 130 watts

Power Bridged @ 4Ω: 3 x 250 watts

Signal to Noise Ratio > 90dB

THD + Noise < 0.2%

Channel Separation  >60dB

Frequency Response 15Hz to 30KHz ±1dB

Dimensions in mm: 160(W) x 57(H) x 450(L) Overall: 160(W) x 57(H) x 475(L)
