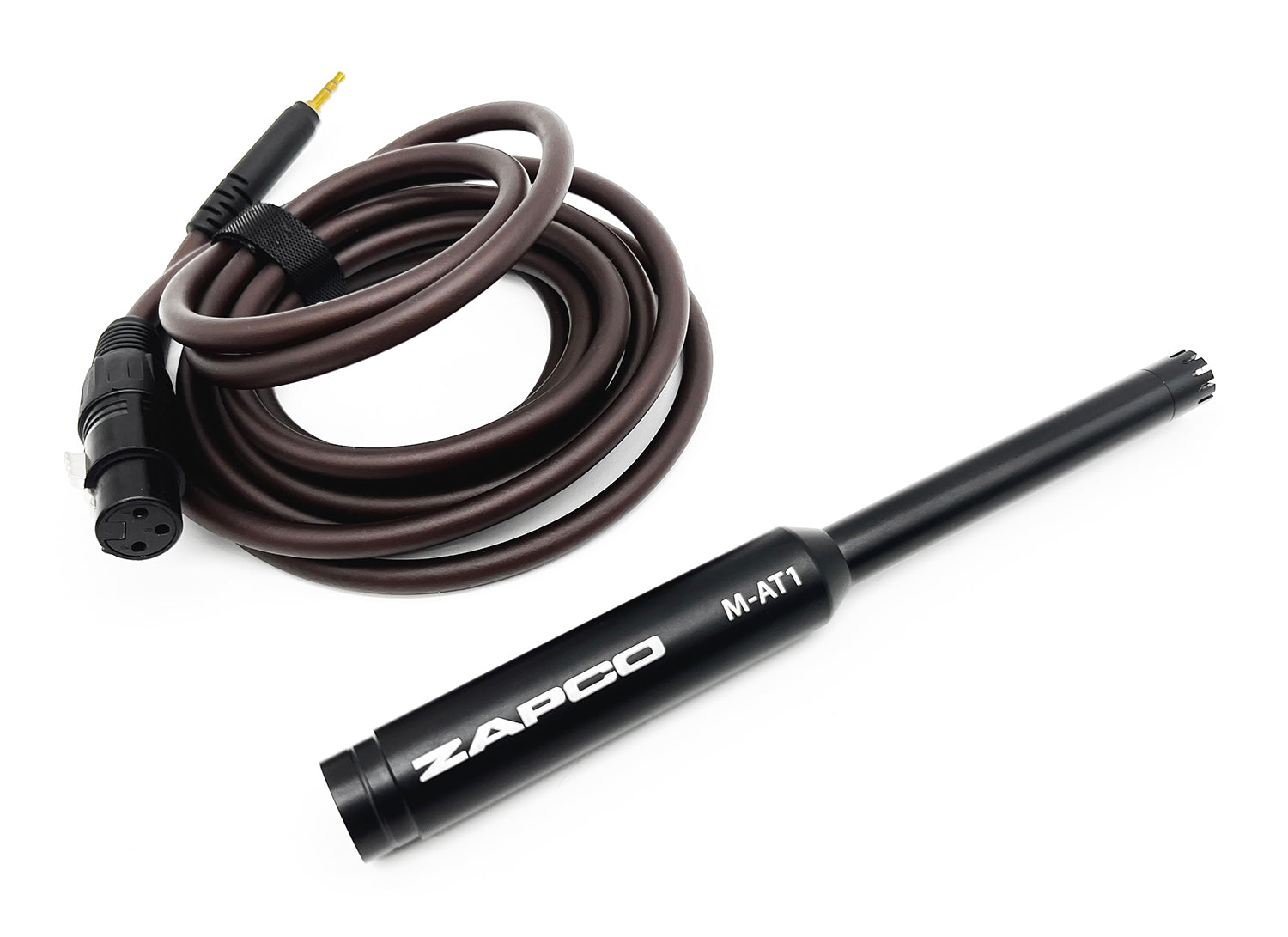

M-AT1   Auto-Tune Microphone

Specifications

Microphone for DSP-IV AT Auto Calibration

Directivity: Omnidirectional

Frequency Response: 20Hz - 20KHz

Sensitivity (1KHz, 0dB=1V/1Pa): -44 dB

S/N (A-Weighted, 1KHz): 60 dBA

Output Impedance: 1KOhm

Operating Voltage: 4.5Vdc (10 max)

Current Consumption: 0.5 mA

Operating Temperature: -40° - +70°

Cable Length: 3 mt

Dimensions (mm): 190(L) x 21(O) x 12.5(O)
