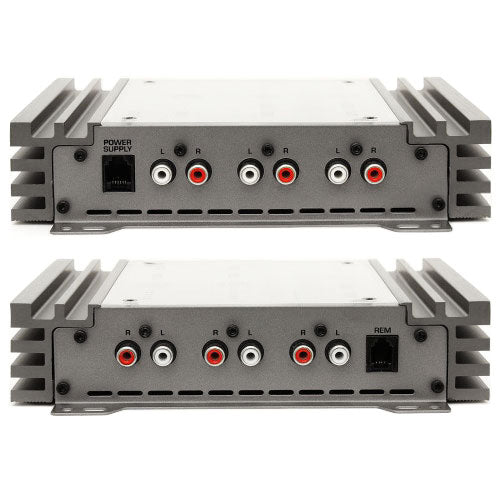

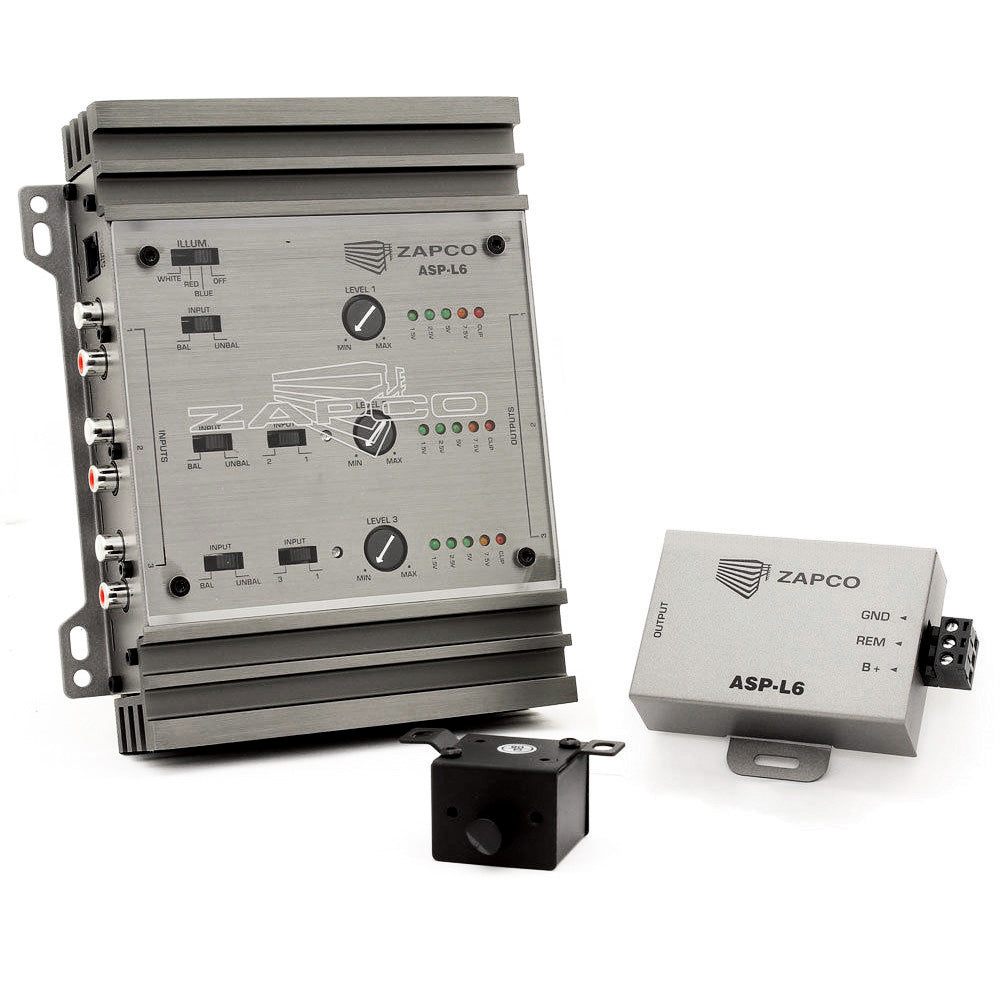

ASP-L6 6-Ch. Signal Line Driver

Features and Functions

- 6-Channels in/6-Channels out line driver at 9.5 Volt RMS, 14 Volts peak
- Distribution preamp configurable for 2, 4 or 6 channels input
- Balanced/unbalanced inputs
- Remote power supply
- Remote for channels 5/6
- Illuminated logo/cover plate

- THD < 0.01%THD
- Signal to Noise Ratio > 110dB
- Stereo Separation 90dB
- Preamp Output 9.5V RMS / 14V Peak
- Net Dimensions (mm): 190(W) x 39(H) x 135(L)
- Overall Dimensions (mm): 190(W) x 39(H) x 164(L)
